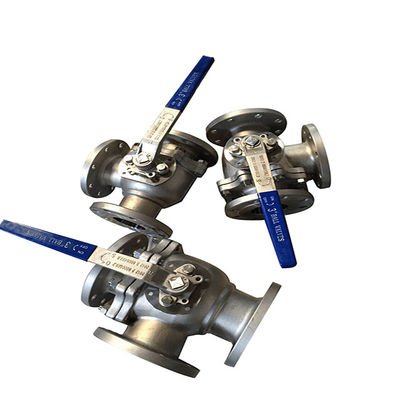

Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve

Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve
Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve

Large Image :  Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q44F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Body Material: CF8,CF8M,WCB,CF3,CF3M Ball Material: CF8,CF8M
Seat Material: PTFE Port Model: L-Port
Standard: GB/ANSI/JIS Model No: Q44F-16P
High Light:

DN200 Flanged Ball Valve

,

3 Way Flanged Ball Valve

,

CF8M Stainless Steel Ball Valve

Actuated Stainless Steel 3-Way Flanged Ball Valve T Type or L Type​



 Specifications

Casting Floating Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
-  DN15 ~ DN200

Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge.

The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.It is used to disconnect both inlets from one outlet or it can connect one of two inlets to one outlet. Other kinds of 3-port valves can be designed for other possible flow-directing schemes and positions.



Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve 0



Pressure Size L L1 D D1 D2 Z-φd ISO5211
φD
4-φW
PN16 15 130 65 95 65 45 4-14 F5 4-φ6
20 160 80 105 75 55 4-14 F5-F7 4-φ8
25 180 90 115 85 68 4-14 F5-F7 4-φ8
32 200 100 135 100 78 4-18 F5-F7 4-φ8
40 220 110 145 110 88 4-18 F7-F10 4-φ10
50 240 120 160 125 102 4-18 F7-F10 4-φ10



 Application

The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.



 Why choose us?

1. The fluid resistance is low, and the resistance coefficient is equal to the pipe lengthh.


2. The structure is simple, small in size and light in weight.


3. It is compact and reliable, and has good sealing properties. It has also been widely used in vacuum systems.


4. The operation is convenient, the opening and closing is rapid, and the rotation is 90° from full opening to full closing, which is convenient for long-distance control.


5. The maintenance is convenient, the ball valve has a simple structure, and the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.


6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium does not cause erosion of the sealing surface of the valve.


7. Wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.



Stainless Steel DN200 CF8M 3 Way Flanged Ball Valve 1
