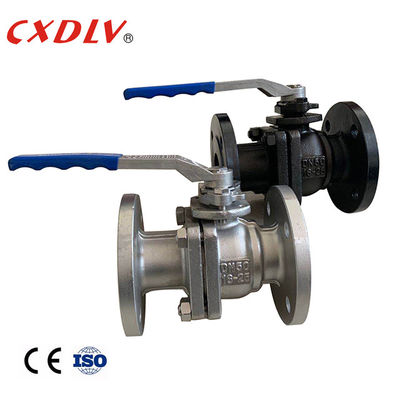

PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve

PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve
PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve

Large Image :  PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Operation: Handle Body Material: CF8 CF8M WCB CF3 CF3M
Pressure: PN16/PN25/PN40 Size: DN15~DN200
Structure: Floating Ball Connection: Double Flange
Medium: Water Oil Gas
High Light:

CF3M Flanged Ball Valve

,

PN25 Flanged Ball Valve

,

A216 Floating Ball Valve

PN25 A216 Gr.WCB Flanged Ball Valve Handle Lever Operation



Specifications

GB Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.



PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve 0

Unit:mm
Pressure Size L φE φB φC T f
PN25 15 130 95 65 45 16 2
20 150 105 75 58 18 2
25 160 115 85 68 18 2
32 180 140 100 78 18 2
40 200 150 110 88 18 3
50 230 165 125 102 20 3



 Application

Ball Valves are generally a bi-directional valve intended for on-off applications used in a number of different industries. Some of these include water, oil, gas, chemical, pharmaceutical, mining just to name a few.



 Why choose ball valve?

1. Anti-static performance: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated by the switching process can be derived.


2. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the spherical body is small, the service life of the pneumatic ball valve is long.


3. The fluid resistance is low, and the pneumatic ball valve is the one with the smallest fluid resistance in all kinds of valve.



4. The valve stem seal is reliable. Because the valve stem only performs the same movement as the lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing capacity increases as the pressure of the medium increases.



 Model Selection

 2PC Full Port Floating Ball Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
  Matreial 1) CF8/SS304     2) CF8M/SS316    3) CF3/SS304L    4) CF3M/SS316L    5) WCB
  Model 1) High Platform Model                2) Handle Model



PN25 A216 Gr.WCB Handle Lever CF3M Flanged Ball Valve 1
