Product Details:
Payment & Shipping Terms:
|
| Disc Material: | CF8M/CF8/CF3/CF3M/WCB | Temperature: | Normal Temperature |
|---|---|---|---|
| Size: | 1/2"~1/1/2" | Pressure: | 150lb |
| Media: | Water,Oil,Gas | Structure: | Check |
| High Light: | 150lb single disc check valve,pn16 double flange swing valve |
||

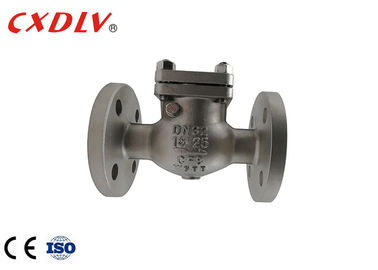

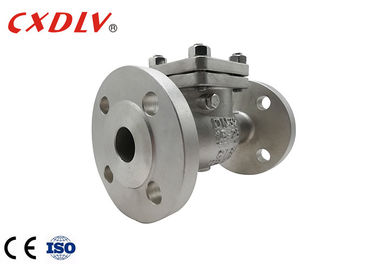

Double Flange Swing Single Disc Check Valve PN16
Specifications
- Design Standard: ASME B16.34, API6D
- Face to Face: ASME B16.10, API6D
- End Flange: ANSI/ASME B16.5, API605
- Buttwelding Ends: ASME B16.25
- Inspection and Test: API598, API6D
Application
Check Valves are also known as one-way valves that allow the flow of the fluid in only one direction. We manufacture our own line of Check Valves in a variety of designs such as swing check, lift check, ball check, dual plate check, and single plate check. Our designs ensure our valves are easy to maintain, economical, and fully functional in horizontal and upward flow applications.
| SIZE | d | L | H | D | C | G | T | N-ΦM |
| 1/2" | 15 | 108 | 51 | 89 | 60.5 | 35 | 11.1 | 4-16 |
| 3/4" | 20 | 117 | 54 | 98 | 70 | 43 | 11.1 | 4-16 |
| 1" | 25 | 127 | 64 | 108 | 79.5 | 51 | 11.1 | 4-16 |
| 1 1/4" | 32 | 140 | 68 | 117 | 89.5 | 64 | 12.7 | 4-16 |
| 1 1/2" | 40 | 165 | 75 | 127 | 98.5 | 73 | 14.3 | 4-16 |
| 2" | 50 | 203 | 98 | 152 | 120.5 | 92 | 15.9 | 4-19 |
| 2 1/2" | 65 | 216 | 112 | 178 | 139.5 | 105 | 17.5 | 4-19 |
Feature
The swing-type check valve adopts a built-in rocker swing type structure, and all the opening and closing parts of the valve are installed inside the valve body without penetrating the valve body, except that the middle flange portion is sealed with a sealing gasket or a sealing ring, and the whole There is no leak point, which eliminates the possibility of valve leakage.The valve flap has a certain degree of freedom in the range of 360 degrees, and there is appropriate micro position compensation.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
