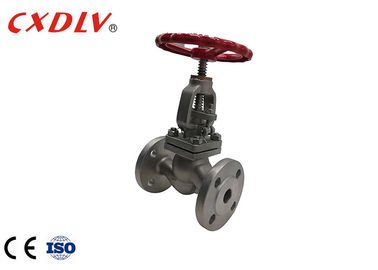

Flanged End Connection Stop Globe Valve PN16 Manual Operated
Specifications
- Design Standard:GB/T2224-2005
- Inspection & Test: JB/T9092-1999
- Face To Face: GB/T12221-2005
- Pressure testing: GB/T13927-1992
Application
Globe valves are a highly common valve in the process industry. They be used for on/off applications, but are generally used for precise throttling applications. Globe valves have a greater pressure drop across the valve then other of valves. This pressure drop occurs, due to a 90 degree turn, the process must flow through within the valve.
Globe Valves contain a few moving parts such as the disk, the valve stem, and the hand wheel. The stem connects the hand wheel and the disk. It is threaded and fits into the threads on the valve bonnet. The location of the valve disk in relation to the valve’s seat, allows or restricts flow. The direction of the fluid flow through the valve will change several times, which increases the pressure drop across the valve. In most cases, globe valves are installed with a stem vertical, and the higher pressure fluid stream connected to the pipe side below the disk. This allows the disk to evenly disperse the fluid flow.
| DN | L | D | D1 | D2 | b | Z-φd | H | D0 |
| 80 | 310 | 200 | 160 | 132 | 22 | 8-20 | 327 | 250 |
| 100 | 350 | 220 | 180 | 155 | 22 | 8-22 | 384 | 250 |
Feature
1. Simple structure, convenient manufacturing and maintenance.
2. Sealing face is not easy to wear and abrasion.
3. Good sealing performance, small friction between sealing surfaces and long service life.
4. The disc travel is small when valve opening and closing, lower height than gate valve, suitable as a medium to cut off or regulation and throttling use.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
