Flanged Globe Valve for Different Industrial and Commercial Applications

Flanged Globe Valve for Different Industrial and Commercial Applications

MOQ: 1pc
Price: FOBUS$27~US$875/pc
Standard Packaging: Suitable Plywood Cases according to different valves' structure
Delivery Period: 5~60 work days
Payment Method: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Capacity: 1000pcs per Month
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE,ISO,TS
Model Number
J41W-16P
Body:
CF8,CF8M,WCB...
Port Size:
1"~18"
Connection:
Flange
Standard:
ANSI,DIN, JIS,GB
Pressure:
PN10~PN40
Application:
Water,Oil,Gas...
Temperature:
-20℃~325℃
Highlight:

forged steel globe valve

,

rising stem globe valve

Product Description

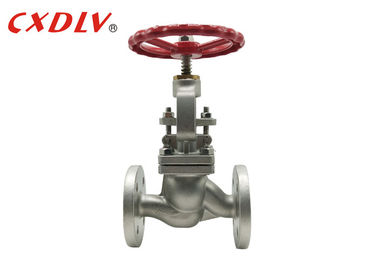

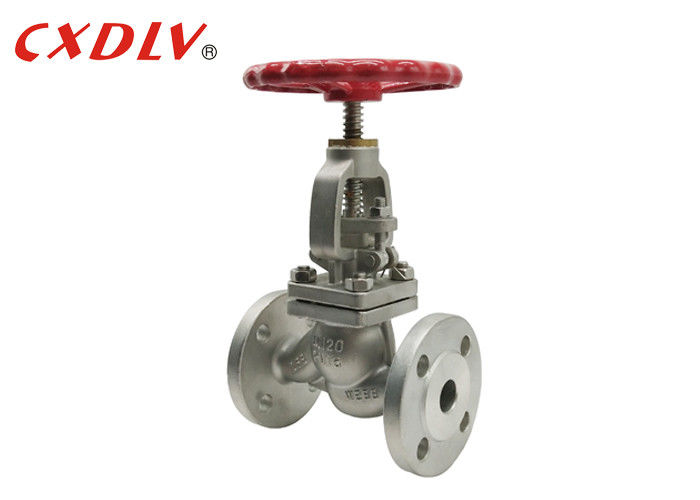

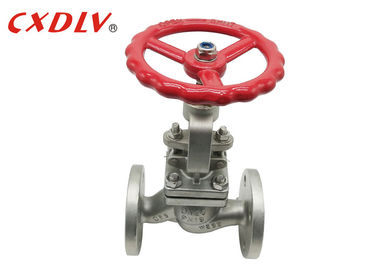

Manual Wheel Rising Stem OS&Y Flanged Globe Valve

                 Globe Valve Overview

Size:1"~18"(25A~450A)

Pressure Rating:PN16~PN64,150LB~600LB,10K~20K

Material:WCB,CF8,CF8M,CF3,CF3M

Temperature:-20℃~+325℃

Standard:ANSI,DIN,JIS,GB

Operating; Hand wheel,worm gear



                 Globe Valve Features

Globe valves are used for regulating flows inside of a pipeline. The desired degree of control or regulation, defines the type of valve and if it should be designed with or without cage guiding.

Where the flow confitions and the regulation requirements are not very severe, this valves are supplied without cage guiding, with flat or conical disc.It is important that the disc guiding be in the body or in the seat,in order to obtain trouble free operation without valve seizing and also a good seat tightness.



                 Globe Valve Dimension

Flanged Globe Valve for Different Industrial and Commercial Applications 0

(Unit:mm)

Nominal Diameter L D b
Inch mm
2" 50 230 165 18
3" 80 310 200 18
4" 100 350 220 18



                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~40days bosed on you order quantity after deposite.



                   FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Flanged Globe Valve for Different Industrial and Commercial Applications 1
