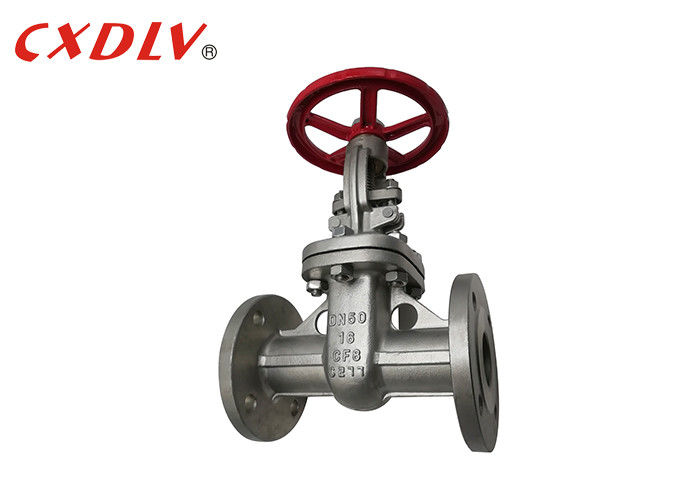

Z41W Casting Steel Gate Valve BB OS&Y RF Flanged Type With Hand Wheel
Specifications
Applicable Standards:
- FACE TO FACE DIMENSION:GB/T 12221
- END FLANGE DIMENSION:GB/T 9113
- DESING:ANSI B16.34
- TEST:API598
Structure:
- Full Port Design
Size Range:
- DN15~DN300
Pressure Rating:
- PN16~PN40,ANSI150~ANSI300,JIS10K~20K
Application
The Gate Valves are designed and manufactured to provide maximum service life and dependability.All gate valves are full ported and meet the design requirements of American petroleum Institute Standard API 600&API 6D and generally conform to American Society of Mechanical Engineers Standard ASME B16.34.Valves are available in a complete range of body/bonnet materials and trims. These gate valves are widely used as conditioning and shut-off devices in pipelines such as tap water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, marine, metallurgy, and energy systems.
| DN | L | D | D1 | D2 | b-f | z-φd | H |
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 185 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 200 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 225 |
Feature
1. The medium can flow in any direction on both sides, which is easy to install. The gate valve channels are symmetrical on both sides.
2. The length of the structure (the distance between the two connecting end faces of the casing) is small.
3. Simple shape, short structure length, good manufacturing process and wide application range.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) SCS13/SS304 2) SCS14/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Operaton | Handwheel Operated,Gear Operated,Electrical Actuated | |||
|
|
