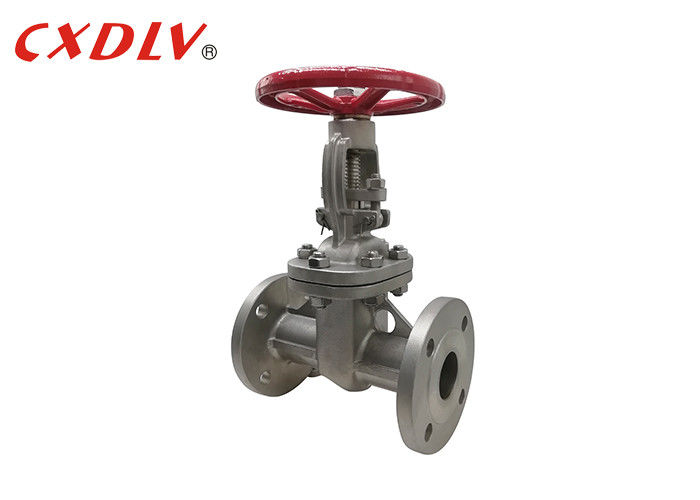

Full Port Bolted Bonnet Handwheel Gate Valve RF Flange Type JIS10K CF8/CF8M

Full Port Bolted Bonnet Handwheel Gate Valve RF Flange Type JIS10K CF8/CF8M
Full Port Bolted Bonnet Handwheel Gate Valve RF Flange Type JIS10K CF8/CF8M

Large Image :  Full Port Bolted Bonnet Handwheel Gate Valve RF Flange Type JIS10K CF8/CF8M

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: PED&ISO
Model Number: Z41W
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Body Material: CF8,CF8M,CF3,CF3M,WCB Structure: Rising Stem
Standard: JIS10K Size: DN50~DN250
Temperture: High Temperture
High Light:

ss gate valve

,

metal seated gate valve

CF8/CF8M Full Port Bolted Bonnet Gate Valve RF Flange Type JIS10K


 Specifications


Applicable Standards:
- Face to face according to JIS B2002
- End Flanges according to JIS B2212-B213
- Inspection and test JIS B2003

Size Range:
- DN15~DN300

Pressure Rating:
- JIS 10K
Temperature Range:
- -29°C~185°C

Applicable Medium:

-water, oil, air and some corrosive liquid



 Application


   The bright rod gate valve, RRHX (Z41X) open rod elastic seat sealing gate valve is a new type of product, the introduction of foreign advanced technology has been modified to adapt to the water system, overcoming the general gate valve poor sealing, elastic fatigue, easy to rust and other defects. The elastic seat sealing gate valve is a replacement product of the traditional gate valve. It uses the elastic ram to produce a slight deformation compensation effect and achieves a good sealing effect. The valve has the advantages of light switch, reliable sealing, good elastic memory and long service life. It is used as a regulating and shut-off device in fluid pipelines such as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy systems.

                                         Full Port Bolted Bonnet Handwheel Gate Valve RF Flange Type JIS10K CF8/CF8M 0
















SIZE L(RF) d H H1 W W1
1/2" 108 14 195 / 120 /
3/4" 117 19 210 / 120 /
1" 127 25 240 / 140 /
1 1/4" 140 32 300 / 180 /



 Feature



1. Small fluid resistance;
2. The torque for opening and closing is small, so it is easy to open and close;
3. The medium flowing direction is not restricted, and it doesn't disturb flowing and reducethe pressure of pipeline.



 Model Selection


Gate Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN40
  Valve Matreial 1) CF8/SS304     2) CF8M/SS316     3) CF3/SS304L     4) CF3M/SS316L     5) WCB
  Operation Handwheel Operated
