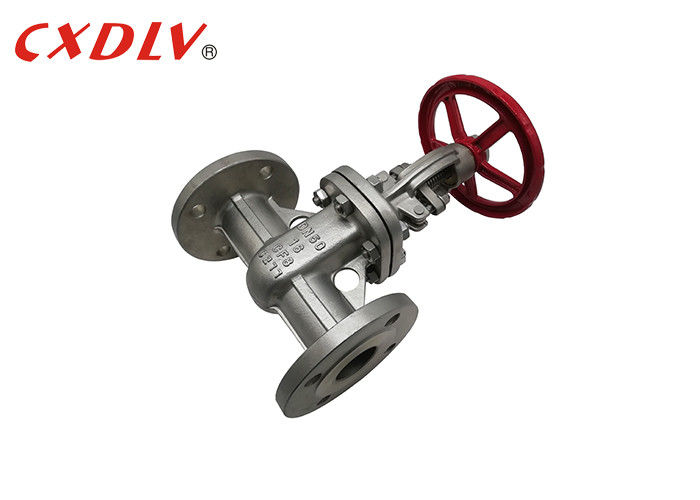

OEM Stainless Steel Flange Ended Gate Valve with Handwheel CF8 CF8M
Specifications
Applicable Standards:
- FACE TO FACE DIMENSION:JIS B2002
- END FLANGE DIMENSION:JIS B2212-B213
- DESING:ASME B16.34,API608
- TEST:JIS B2003,API6D
Size Range:
- DN15~DN250
Pressure Rating:
- JIS10K
Temperature Range:
- -29°C~185°C
Application
Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.It can also be made into a gate that can produce a small amount of deformation to improve its processability and make up for the deviation of the sealing surface angle during the machining process. The board is called a resilient shutter. When the gate valve is closed, the sealing surface can be sealed only by the medium pressure, that is, the sealing surface of the ram is pressed against the valve seat on the other side by the medium pressure to ensure the sealing of the sealing surface, which is self-sealing. Most of the gate valves are forced to seal, that is, when the valve is closed, the external force is forced to press the gate to the valve seat to ensure the sealing of the sealing surface.
| DN | L | D | D1 | D2 | b-f | z-φd | H |
| 50 | 178 | 155 | 120 | 96 | 16 | 4-19 | 320 |
| 80 | 203 | 185 | 150 | 126 | 18 | 8-19 | 390 |
| 150 | 267 | 280 | 240 | 212 | 22 | 8-23 | 674 |
| Please contact for other sizes. | |||||||
Feature
1. High height, long opening and closing time. The opening and closing stroke of the shutter is large, and the drop is performed by the screw.
2. The water hammer phenomenon is not easy to produce. The reason is that the shutdown time is long.
3. The medium can flow in any direction on both sides, which is easy to install. The gate valve channels are symmetrical on both sides.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
|
|
