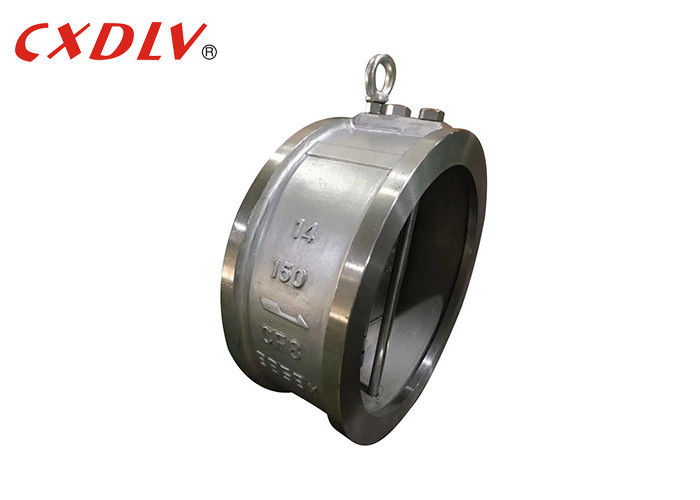

14" ANSI150 Dual Plate Wafer Type Check Valve Two Door Body CF8 ANSI Standard

14" ANSI150 Dual Plate Wafer Type Check Valve Two Door Body CF8 ANSI Standard

MOQ: 1 Piece
Price: Negotiation
Delivery Period: 7-30 days
Payment Method: L/C, T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
ISO9001:2008&CE
Model Number
H76H
Disc Material:
CF8M/CF8/CF3/CF3M/WCB
Temperature:
-29℃~500℃
Medium:
Water.Air.Oil
Size:
1/1/2"~14"
Pressure:
150LB/300LB
Standard:
ANSI
Highlight:

dual plate wafer check valve

,

dual disc wafer check valve

Product Description

14" ANSI150 Wafer Type Check Valve Two Door Body CF8



 Specifications



Design According to AP1594. API6D. JB/T8937
Face to face according to API594. API6D. DIN3202. JB/T8937
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to ANSI B 16.34. DIN2401. GB/T9124. JB/T74


 Application



        The double-valve check valve is used for pure pipelines and industrial, environmental, water treatment, high-rise building water supply and drainage pipelines to prevent reverse flow of media. The check valve adopts a clip type, the butterfly plate has two semicircles, and the spring is forcibly reset, and the sealing surface can be a body wear welding wear material or a lining rubber, and the utility model has wide application range and reliable sealing.







 Dimensional drawing



14" ANSI150 Dual Plate Wafer Type Check Valve Two Door Body CF8 ANSI Standard 0

DN L D D2 D3
50(2") 60 103 51 56
65(1 1/2") 67 122 65 73
80(3") 73 135 80 88
100(4") 73 173 102 108
125(5") 86 195 127 132
150(6") 98 220 152 160
200(8") 127 277 203 210
250(10") 146 337 254 266
300(12") 181 407 305 310
350(14") 184 448 350 355



 Feature



1. Patented retainer-less design - High integrity sealing, facilitates quick disassembly at site.

2. Stopper pin prevents the discs from coming into contact with each other and thus prevents disc damage.
3. The valve flap of the double-lobe butterfly check valve is closed quickly, and the water hammer pressure is small;

4. All features put together make the dual plate check valve as the most efficient&versatile design.



 Why choose us?



       Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



        As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.



        Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer full of experience.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
