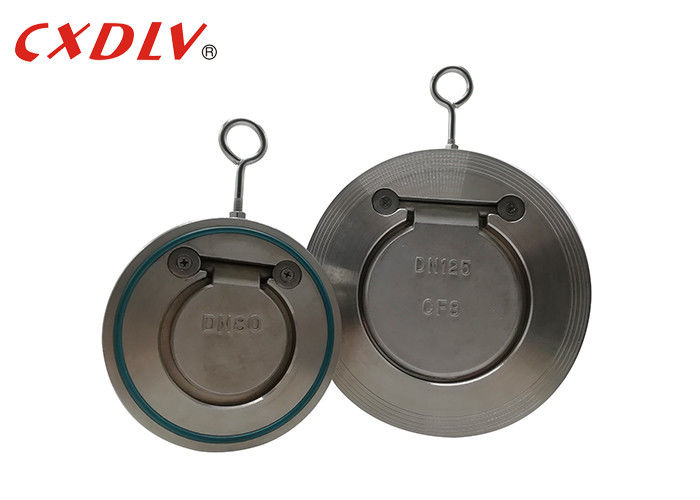

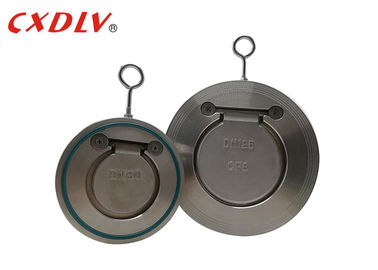

SS316 Essentric Disc Stainless Swing Check Valve PN16 PTFE O Ring With ISO Approval

SS316 Essentric Disc Stainless Swing Check Valve PN16 PTFE O Ring With ISO Approval
SS316 Essentric Disc Stainless Swing Check Valve PN16 PTFE O Ring With ISO Approval

Large Image :  SS316 Essentric Disc Stainless Swing Check Valve PN16 PTFE O Ring With ISO Approval

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008&PED
Model Number: H74W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Suitable Polywood Cases according to different valves structure
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M/CF8/CF3/CF3M/WCB Temperature: -29℃~180℃
Medium: Water.Air.Oil Size: DN150~DN200
Pressure: PN10/PN25 O-RING: PTFE
Body Material: CF8M/CF8/CF3/CF3M/WCB
High Light:

stainless steel check valve

,

high pressure check valve

SS316 Essentric Disc Swing Wafer Check Valve PN16



 Specifications

Applicable Standards:

- FACE TO FACE: AP16D/AMSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C



Application



The single disc wafer swing check valve H74W/X is an ultra-thin check valve. It adopts short structure size and single valve design. The movement is sensitive, and the installation space is especially limited.The utility model has the advantages of simple structure, beautiful appearance, light weight, convenient installation.Compared with the traditional swing check valve, this series of stainless steel valves has no external leakage, can be installed in any position, good sealing performance, small linear vibration, low pressure drop and zero seat ring wear advantage of check.

SS316 Essentric Disc Stainless Swing Check Valve PN16 PTFE O Ring With ISO Approval 0



DN B A(NF) L
PN10 PN25 PN10 PN25
50 28 108

108

16 16
65 45 128 128 16 16
80 55 142 142 16 16
100 76 162 168 16 16
125 93 192 194 16 16
150 118 218 225 19 19
200 160 273 285 28 28
250 200 329 341 28 28
300 230 385 401 38 38
350 273 445 458 38 38
400 313 496 515 48 48
450 362 556 565 48 48
500 412 618 622 58 58



 Feature



1. Wafer type check valve has short face to face dimensions and low weight allows a simple space saving installation between the companion flanges .
2. The valves are suitable to mounting between weld neck or slip on type companion flanges of different standards.
3. They are specially developed for applications where a low-pressure loss is essential.Opening and closing of the valve will take place at an extremely low-pressure difference over the valve disc.
4.The eccentric disc shaft combination with the disc seat guarantees a positive shut off returning media.Wafer check valves are becoming the preferred type of check valve for most applications,due to their compact design and relatively low cost.



 Why choose us?



       Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



        As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.



        Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
