150LB CF8M NBR/EPDM O-ring Resilient Sealing Check Valve for Water/Steam/Oil/Gas

150LB CF8M NBR/EPDM O-ring Resilient Sealing Check Valve for Water/Steam/Oil/Gas

MOQ: 1pc
Price: FOBUS$13~US$715/pc
Standard Packaging: Suitable Plywood Cases according to different valves' structure
Delivery Period: 5~25 work days
Payment Method: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Capacity: 2000pcs per Month
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE,ISO,TS
Model Number
H74W
Body:
CF8,CF8M,WCB...
Disc:
SS304,SS316,SS201
Seat:
Metal Seat
Port Size:
DN40~DN600
Connection:
Wafer
Standard:
ANSI,ASME,DIN, JIS,GB
Pressure:
PN10~PN40
Application:
Water,Oil,Gas...
Highlight:

DN600 stainless steel check valve

,

PN40 high pressure check valve

,

CF8M stainless steel check valve

Product Description

150LB CF8M Single Plate Wafer Check Valve with O-ring Resilient Sealing

               Check Valve Features



Body Material Carbon Steel CF8                CF8M
Valve Disc Carbon Steel SS304 SS316
Bolt,Washer SS304 SS304 SS316
Eye Bolt Plated Carbon Stee Plated Carbon Steel Plated Catbon Steel
O-ring NBR,EPDM
Working Temperature -20℃~120℃ -29℃~180℃ -29℃~180℃
Medium Water,Steam,Oil,Gas
Standard ANSI,DIN,JIS,JB



               (150LB)Single Plate Swing Check Valve Dimension

(Unit:mm)

DN A L
150LB 300LB 150LB 300LB
100 174 180 19 22
125 197 215 19 22
150 222 250 19 22
200 279 307 28 28



                  Check Valve Overview

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system.Often applied on the discharge side of pumps,check valves prevent the system from draining if the pump stops and protects against backflow, which could harm the pump and/or other equipment.

Swing Check Valve has a flat disc that pivots or swings about a hinge pin. They are low cost, and have low head loss characteristics when fully open. But because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessoryy. They can handle liquids with solids such as wastewater.

       Features:

  • Wafer Type Check Valve weighs much less as compared to the conventional flanged end swing check valves.
  • Due to Short Overall length it can be easily installed in horizontal or in vertical pipeline without any special pipe support.
  • The seat is fitted in the body in order to prevent contact with the flow,which results in longer life of the seat.
  • Our wafer type check valve has minimum head loss due to large size of the orifice. The large orifice reduces head loose of the pump and thus saves energy.
  • Short face-to-face dimension of the valve makes it easy to install between standard gasket and line flanges

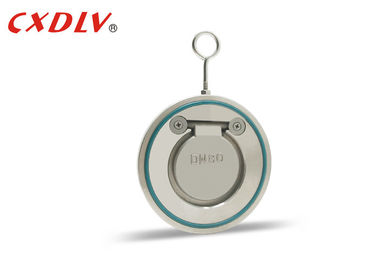

150LB CF8M NBR/EPDM O-ring Resilient Sealing Check Valve for Water/Steam/Oil/Gas 0

                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~40days bosed on you order quantity after deposite.

                   FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

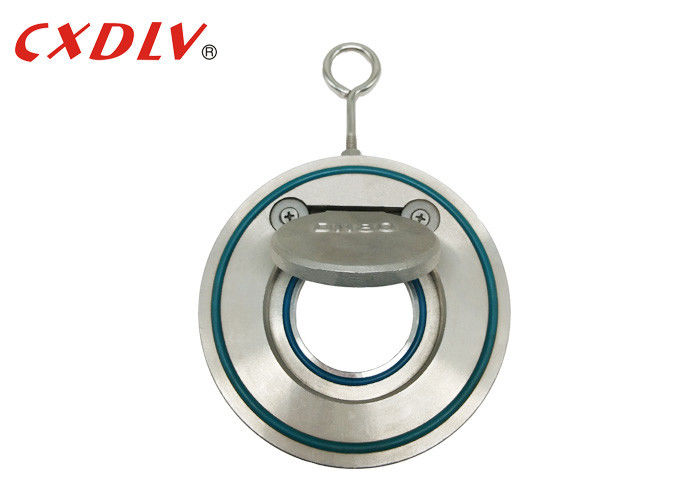

150LB CF8M NBR/EPDM O-ring Resilient Sealing Check Valve for Water/Steam/Oil/Gas 1
