Product Details:
Payment & Shipping Terms:
|
Disc Material: | CF8M/CF8/CF3/CF3M/WCB | Temperature: | -29℃~180℃ |
---|---|---|---|
Medium: | Water.Air.Oil | Size: | DN40~DN600 |
Pressure: | PN40/ANSI600 | Flange Dimension: | JB/ANSI |
High Light: | CF3 CF3M stainless steel check valve,DN40 wafer check valve,PN40 ANSI600 wafer check valve |

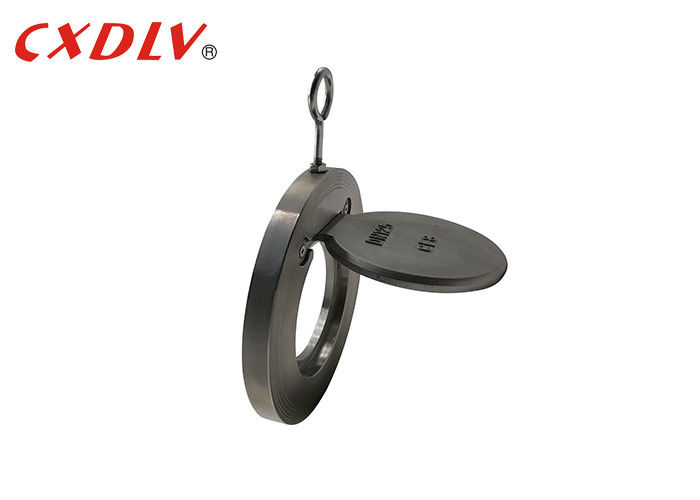

Wafer Type Swing Check Valve in Short Face To Face Dimension Non-return Valve
Specifications
Applicable Standards:
- FACE TO FACE: AP16D/AMSE B16.10
- FLANGE DIMENSION: ANSI/DIN/JIS/JB
Size Range:
- DN40~DN600
Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C
Application
H74 type wafer-type check valve is an ultra-thin check valve. Its main function is to prevent backflow of medium. It is an automatic valve that relies on medium pressure to open and close. Applicable to shipbuilding, petrochemical industry, chemical industry, prarmaceutical industry, valveation technology,fire protection equipment,pumping stations. Wenzhou Xidelong valve co.,ltd pair disc type check valve consists of several parts such as valve body, valve disc and sealing ring. It adopts swing type structure with light weight, simple structure, convenient installation and maintenance, and service life. Long features.
SIZE | B | A | L |
1 1/2" | 23 | 87 | 19 |
2" | 30 | 104 | 19 |
2 1/2" | 41 | 124 | 19 |
3" | 54 | 136 | 19 |
4" | 71 | 174 | 19 |
5" | 92 | 197 | 19 |
6" | 112 | 222 | 19 |
8" | 155 | 279 | 28 |
10" | 201 | 339 | 28 |
12" | 240 | 409 | 38 |
14" | 270 | 450 | 44 |
16" | 311 | 514 | 48 |
18" | 360 | 549 | 58 |
20" | 410 | 606 | 64 |
24" | 490 | 717 | 68 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
