MOQ: | 1 Piece |
Price: | Negotiation |
Standard Packaging: | Suitable Polywood Cases according to different valves structure |
Delivery Period: | 7-30 days |
Payment Method: | L/C, T/T, Western Union |

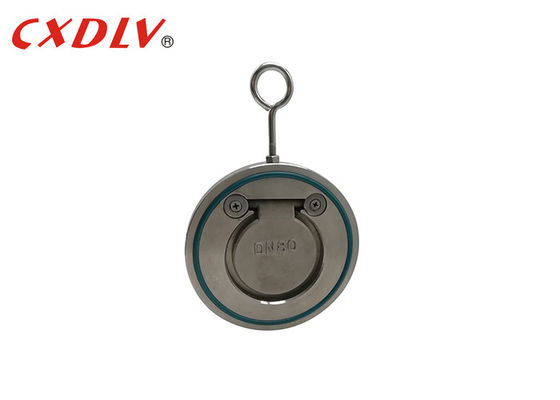

H74 GB Swing Style Wafer Check Valve Stainless Steel PN10
Specifications
Applicable Standards:
- FACE TO FACE: AP16D/ANSE B16.10
- FLANGE DIMENSION: ANSI/DIN/JIS/JB
Size Range:
- DN40~DN600
Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C
Application
The single-piece swing check valve H74W/X is an ultra-thin check valve. It adopts short structure size and single valve design. The movement is sensitive, and the installation space is especially limited. The most suitable place. The utility model has the advantages of simple structure, beautiful appearance, light weight, convenient installation and the like. Compared with the traditional swing check valve, this series of stainless steel valves has No external leakage, can be installed in any position, good sealing performance, small linear vibration, low pressure drop and zero seat ring wear advantage of check.
DN | B | A(NF) | L | ||
PN10 | PN25 | PN10 | PN25 | ||
50 | 28 | 108 |
108 |
16 | 16 |
65 | 45 | 128 | 128 | 16 | 16 |
80 | 55 | 142 | 142 | 16 | 16 |
100 | 76 | 162 | 168 | 16 | 16 |
125 | 93 | 192 | 194 | 16 | 16 |
150 | 118 | 218 | 225 | 19 | 19 |
200 | 160 | 273 | 285 | 28 | 28 |
250 | 200 | 329 | 341 | 28 | 28 |
300 | 230 | 385 | 401 | 38 | 38 |
350 | 273 | 445 | 458 | 38 | 38 |
400 | 313 | 496 | 515 | 48 | 48 |
450 | 362 | 556 | 565 | 48 | 48 |
500 | 412 | 618 | 622 | 58 | 58 |
Feature
Why choose us?
Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
