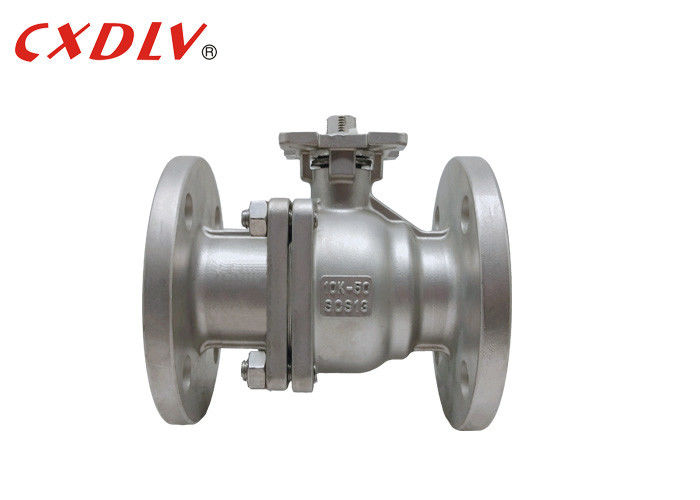

JIS10K SCS13 2 inch Stainless Steel Ball Valve With Solid Stainless Steel Ball

JIS10K SCS13 2 inch Stainless Steel Ball Valve With Solid Stainless Steel Ball

MOQ: 1pc
Price: FOBUS$30~US$850/pc
Standard Packaging: Suitable Plywood Cases according to different valves' structure
Delivery Period: 5~25 work days
Payment Method: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Capacity: 5000pcs per Month
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE,ISO,TS
Model Number
Q41F
Body:
CF8,CF8M,WCB...
Seat:
PTFE,RPTFE
Structure:
Full Bore
Port Size:
15A~200A
Connection:
Flange
Standard:
ANSI,ASME,API ,DIN, JIS,BS, GB
Pressure:
10K~20K
Operation:
Pneumatic,Electric,.Worm Gear
Application:
Water,Oil,Gas...
Highlight:

stainless steel flanged ball valves

,

stainless steel floating ball valve

,

CF8 200A flanged ball valves

Product Description

JIS10K SCS13 2inch Stainless Steel Ball Valve With Solid Stainless Steel Ball

               Ball Valve Features

  High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608

- Flange Connection: JIS B2212~B213

- Fireproof Test: API607 4th 1993

- Face-to-face dimensions: JISB2002

- Test and Inspection: JIS B2003,API6D

Size Range:
- 15A ~ 200A

Pressure Rating:
- 10K,20K

Body Material:

- CF8,CF8M,WCB,CF3,CF3M,Duplex Stainless Steel...

Seat Material:

- PTFE,PPL,POB...

Temperature Range:
- 20°C~280°C

Accessories:

- pnematic actuator,electric actuator,worm gear,manual override,solenoid valve,limit switch,filter

OEM WELCOMED



                Ball Valve Dimension

JIS10K SCS13 2 inch Stainless Steel Ball Valve With Solid Stainless Steel Ball 0

(Unit:mm)

Pressure DN Size L D
10K 40 1-1/2" 165 140
50 2" 178 155
65 2-1/2" 190 175
80 3"" 203 185



                  Advantages of Ball Valve

  • With lowest flow resistance
  • It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
  • In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
  • Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
  • Manufactured in different sizes providing flexibility in selection
  • Provide safe service under high pressure and high temperature conditions
  • Compared with other valves,they are controlled with less force.

                  Ball Valve Applications

Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.

They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.

                   FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

JIS10K SCS13 2 inch Stainless Steel Ball Valve With Solid Stainless Steel Ball 1
