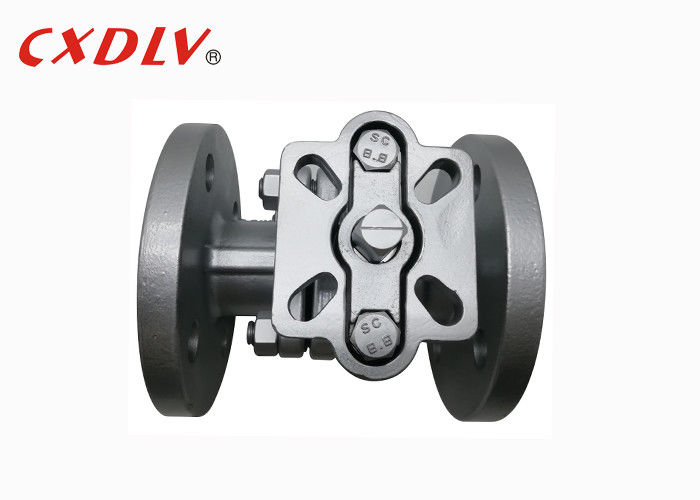

Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad

Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad
Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad

Large Image :  Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Valve Material: CF8,CF8M,CARBON STEEL Seat Material: PTFE/RPTFE/
Pressure: PN40 Size: DN15~DN200
Certificate: CE/ISO Standard: GB
High Light:

stainless steel ball float valve

,

stainless steel floating ball valve

,

PN40 DN200 ball float valve

2-Split Body Investment Casting Carbon Steel Full Bore Floating Ball Valve ISO Mounting Pad



 Specifications

Investment Casting Carbon Steel Floating Ball Valve

Suitable for :

- Oil

- Water

- Sewerage Industries

- Chemicals

Applicable Standards:
- Design: GB/T12237-2008

- End Flange: HG/T20592-2009

- Face to Face: GB/T12221-2005

- Inspection Testing: GB/T13927

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Ball valve, split-body, full-bore, floating ball valve represents the highest standards in valve technology.The multi-way ball valve not only can flexibly control the confluence, splitting, and flow direction switching of the medium, but also can close any channel and connect the other two channels.

Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad 0Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad 1



PN(Mpa) DN L D D1 D2 T f N-φh Q Q1 Q3 Q2
1.6 50 203 165 125 102 18 2.5 4-18 70 102 12 17
65 Contact us freely
80
100
125
150
200


 Application

CXDLV Ball valves, serving Multi-National end users in a wide range of applications in many industries,including petroleum refining, long-distance pipelines, chemical, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.



 Advantage

1. Small fluid resistance: pneumatic ball valve is the smallest of the fluid resistance of all valve classification, even the reduced diameter pneumatic ball valve, its fluid resistance is quite small.


2. Stem seal is reliable: Since the valve stem only rotates and does not move up and down, the packing seal of the valve stem is not easy to break, and the sealing capacity increases with the increase of the medium pressure.


3. The sealing performance of the valve seat is good: the sealing ring made of elastic material such as PTFE is easy to seal, and the valve sealing ability of the pneumatic ball valve increases with the increase of the medium pressure.



 Model Selection

2-Split Body Investment Casting Carbon Steel Full Bore Floating Ball Valve ISO Mounting Pad



  Standard GB
  Mounting ISO5211 Mounting Pad
  Type Floating
  Model Q41F



Full Bore Floating Stainless Steel Ball Valve 2 Split Body Investment ISO Mounting Pad 2
