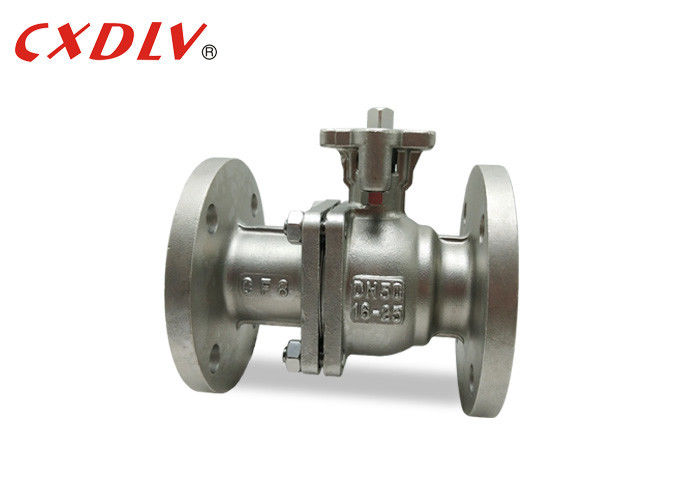

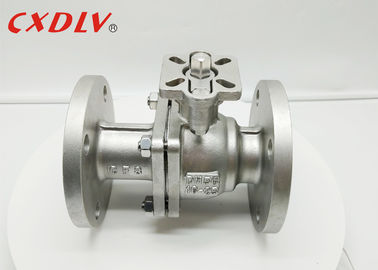

Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform

Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform
Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform

Large Image :  Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE,ISO,TS
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: FOBUS$28~US$750/pc
Packaging Details: Suitable Plywood Cases according to different valves' structure
Delivery Time: 5~25 work days
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000pcs per Month
Detailed Product Description
Body: CF8,CF8M,WCB... Seat: PTFE,RPTFE
Structure: Full Bore Port Size: DN15~DN200
Connection: Flange Standard: ANSI,ASME,API ,DIN, JIS,BS, GB
Pressure: 1.0~6.4MPa Operation: Pneumatic,Electric
Application: Water,Oil,Gas...
High Light:

stainless steel ball float valve

,

stainless steel floating ball valve

Double Flange Stainless Steel Ball Valve High Plateform Two Pieces Valve

               Ball Valve Features

  High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing: GB12237-89

- Flange Connection: JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection: GB/T13927-1992

Size Range:
- DN15 ~ DN200

Pressure Rating:
- PN16,PN25,PN40,PN63

Body Material:

- CF8,CF8M,WCB,CF3,CF3M,Duplex Stainless Steel...

Seat Material:

- PTFE,PPL,POB...

Temperature Range:
- 20°C~280°C

Accessories:

- pnematic actuator,electric actuator,worm gear,manual override,solenoid valve,limit switch,filter

OEM WELCOMED



                Ball Valve Dimension

Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform 0

(Unit:mm)

Pressure DN Size L D
PN16 15 1/2" 130 95
20 3/4" 140 105
25 1" 150 115
32 1-1/4"" 165 135



                  Advantages of Ball Valve

  • With lowest flow resistance
  • It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
  • In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
  • Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
  • Manufactured in different sizes providing flexibility in selection
  • Provide safe service under high pressure and high temperature conditions
  • Compared with other valves,they are controlled with less force.

                  Ball Valve Applications

Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.

They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.



Two Pieces Stainless Steel Ball Valve Double Flange Full Bore Structure High Plateform 1
