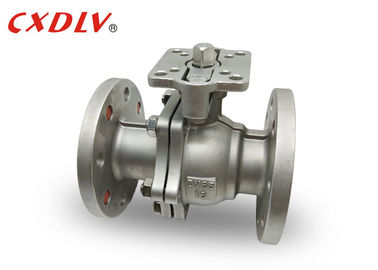

2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad

2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad
2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad

Large Image :  2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE,ISO,TS
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: FOBUS$28~US$750/pc
Packaging Details: Suitable Plywood Cases according to different valves' structure
Delivery Time: 5~25 work days
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000pcs per Month
Detailed Product Description
Body: CF8,CF8M,WCB... Seat: PTFE,RPTFE
Structure: Floating Ball Port Size: DN15~DN200
Connection: Flange Standard: ANSI,ASME,API ,DIN, JIS,BS, GB
Operation: Pneumatic,Electric Application: Water,Oil,Gas...
High Light:

stainless steel flanged ball valves

,

stainless steel floating ball valve

2 Way Full Bore CF8M Stainless Steel Ball Valve DN65 with ISO5211 Pad

               Ball Valve Features

  High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing: GB12237-89

- Flange Connection: JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection: GB/T13927-1992

Size Range:
- DN15 ~ DN200

Pressure Rating:
- PN16,PN25,PN40,PN63

Body Material:

- CF8,CF8M,WCB,CF3,CF3M,Duplex Stainless Steel...

Seat Material:

- PTFE,PPL,POB...

Temperature Range:
- 20°C~280°C

Accessories:

- pnematic actuator,electric actuator,worm gear,manual override,solenoid valve,limit switch,filter

OEM WELCOMED



                Ball Valve Dimension

2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad 0

(Unit:mm)

Pressure DN Size L D
PN16 40 1-1/2" 180 145
50 2" 200 160
65 2-1/2" 220 180
80 3" 250 195



                  Advantages of Ball Valve

  • Provide leak-proof service
  • Open and Close Quickly
  • Compared with gate valves,they have very small dimensions
  • Compared with gate valves,they are lighter
  • Manufactured in different sizes providing flexibility in selection
  • Provide safe service under high pressure and high temperature conditions
  • Compared with other valves,they are controlled with less force.

                  Ball Valve Applications

Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.

They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.



2 Way Stainless Steel Ball Valve Full Bore CF8M DN65 Flange Connection With ISO5211 Pad 1
