Product Details:
Payment & Shipping Terms:
|
Type: | Worm Gear | Structure: | ISO5211 Mounting |
---|---|---|---|
Operation: | Handwheel | Model: | W6 |
Medium: | Water Oil Gas | ISO5211: | F45 |
High Light: | handwheel actuator,control valve actuator |

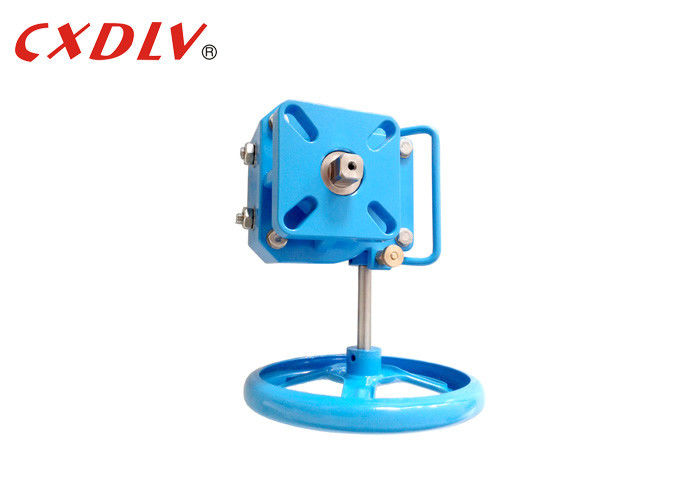

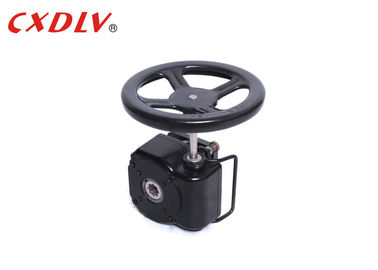

Customized Motor Operated Valve Actuator Worm Gear Manual Override
Product Feature
The manual overrides are “safety” features for when power is lost and the solenoid needs to be operated. 2 position valves with manual overrides, when activated, shift the valve to its energized position. Some 3 position valves come standard with a one-direction, push-pin manual override. When the manual override is pushed, the spool shifts following the logic of energizing S2. Manual override options are intended for emergency use only and are not intended for continuous operation.
Specifications
Depending on the markets and types of facilities, the features of emergency manual control, key functions of the actuator, can be very different. However, several features have a prime significance.
Manual override specifications:
Manual override with electrical priority is required in most of the technical specifications. However, the following two principles must be adhered to:
1. it must be possible to operate the handwheel at any time
2. the number of turns on the handwheel must not be too high.
Why Choose Xidelong?
Competitive Price:
We provide competitive price, good quality and best service to reach the win-win goal.
Customization:
custom-made is acceptable.
Payment Terms And Conditions:
1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.
2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)
Technical Data
Model No | A | B | C | D | E | F | G | H | J | K |
W-6 | 395 | 160 | 140 | 140 | 500 | 233 | 60 | 172 | 50 | 48 |
Application
Standard worm gears can be configured to fit almost any partial-turn or multi-turn valve (e.g., ball valves, butterfly valves, etc.). Worm gear operators create a mechanical advantage in torque, which reduces the amount of work and/or the number of turns required to cycle a valve.
