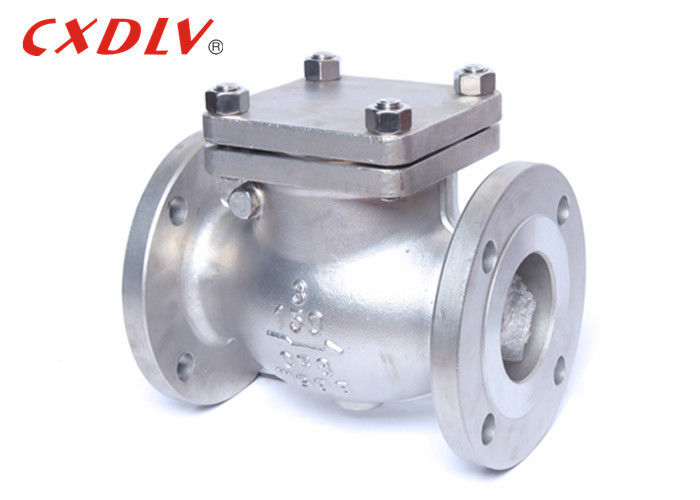

ANSI H44 Flange Type Swing Non Return Valve 10 Inch Stainless Steel / Carbon Steel
Specifications
- Design Standard: ASME B16.34, API6D
- Face to Face: ASME B16.10, API6D
- End Flange: ANSI/ASME B16.5, API605
- Buttwelding Ends: ASME B16.25
- Inspection and Test: API598, API6D
Application
The swing-type check valve adopts the built-in rocker arm swinging structure, and all the opening and closing parts of the valve are installed inside the valve body without penetrating the valve body, except for the sealing gasket and the sealing ring of the middle flange part, the whole There is no leak point to prevent the possibility of valve leakage. The swing-type check valve has a spherical connection structure at the joint of the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom within a range of 360 degrees, and has appropriate micro-position compensation.
| SIZE | d | L | H | D | C | G | T | N-ΦM |
| 1/2" | 15 | 108 | 51 | 89 | 60.5 | 35 | 11.1 | 4-16 |
| 3/4" | 20 | 117 | 54 | 98 | 70 | 43 | 11.1 | 4-16 |
| 1" | 25 | 127 | 64 | 108 | 79.5 | 51 | 11.1 | 4-16 |
| 1 1/4" | 32 | 140 | 68 | 117 | 89.5 | 64 | 12.7 | 4-16 |
| 1 1/2" | 40 | 165 | 75 | 127 | 98.5 | 73 | 14.3 | 4-16 |
| 2" | 50 | 203 | 98 | 152 | 120.5 | 92 | 15.9 | 4-19 |
| 2 1/2" | 65 | 216 | 112 | 178 | 139.5 | 105 | 17.5 | 4-19 |
| 3" | 80 | 241 | 124 | 190 | 152.5 | 127 | 19.1 | 4-19 |
| 4" | 100 | 292 | 161 | 229 | 190.5 | 157 | 23.9 | 8-19 |
| 5" | 125 | 330 | 180 | 254 | 216 | 186 | 23.9 | 8-22 |
| 6" | 150 | 356 | 205 | 279 | 241.5 | 216 | 25.4 | 8-22 |
| 8" | 200 | 495 | 236 | 343 | 298.5 | 270 | 28.6 | 8-22 |
| 10" | 250 | 622 | 302 | 406 | 362 | 324 | 30.2 | 12-25 |
| 12" | 300 | 698 | 340 | 483 | 432 | 381 | 31.8 | 12-25 |
| 14" | 337 | 787 | 385 | 533 | 476.5 | 413 | 35 | 12-29 |
Feature
1. The swing-type stop valve has a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom in the range of 360 ° C, and has appropriate micro-position compensation.
2. The sealing surface of the rotary check valve sealing pair is made of alloyed steel (13Cr) or cemented carbide Stellite6, which is used in fine-grained media and does not wear quickly due to erosion.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
