Product Details:
Payment & Shipping Terms:
|
| Body Material: | CF8/CF8M/CF3/CF3M/WCB | Size: | DN150~DN200 |
|---|---|---|---|
| Connection: | Flange End | Power: | Manual |
| GASKET: | GRAPHITE OR RUBBER | Working Temperature: | ≤200℃ |
| High Light: | y type strainer,flanged y strainer |
||

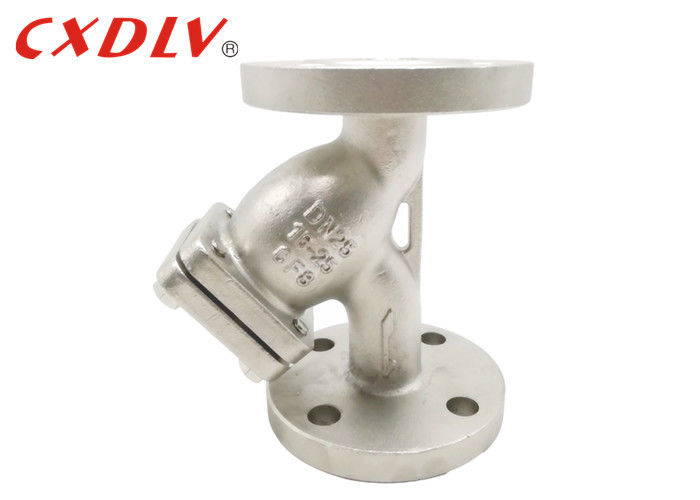

Filter Impurities Flanged Y Strainer Valve For Oil Water Gas Energy Saving
Specifications
Nominal pressure: PN1.6-6.4
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180℃
Applicable media:Water.Oil.Gas
Application
Y-type filter is suitable for domestic, domestic, and industrial liquids in the production of petroleum, chemical, chemical fiber, light industry, water treatment, municipal engineering, etc., to filter solid impurities. It is usually installed in front of the pump, compressor inlet or flow meter, pipeline valve, and piping equipment to protect equipment and piping from blockage and wear.
Y-type filters are usually installed at the inlet end of pressure reducing valves, pressure relief valves, fixed water level valves or other equipment to remove impurities from the media to protect the normal use of valves and equipment. It can also be used for filtration of large particles in gas or other media. It can be installed on the pipeline to remove large solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.) and instruments can work and operate normally, and the process is stabilized. The role of safe production. The Y-type filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil network is 100~480 mesh.
| SIZE | d | D | D1 | D2 | t | C | n-φb | L |
| DN15 | 15 | 95 | 65 | 45 | 2 | 14 | 4-14 | 120 |
| DN20 | 20 | 105 | 75 | 58 | 2 | 14 | 4-14 | 140 |
| DN25 | 25 | 115 | 85 | 68 | 2 | 14 | 4-14 | 155 |
| DN32 | 32 | 135 | 100 | 78 | 2 | 16 | 4-18 | 180 |
| DN40 | 40 | 145 | 110 | 88 | 3 | 16 | 4-18 | 200 |
| DN50 | 50 | 160 | 125 | 102 | 3 | 16 | 4-18 | 220 |
| DN65 | 65 | 180 | 145 | 122 | 3 | 18 | 4-18 | 250 |
| DN80 | 80 | 195 | 160 | 138 | 3 | 20 | 8-18 | 280 |
| DN100 | 100 | 215 | 180 | 158 | 3 | 20 | 8-18 | 320 |
| DN125 | 125 | 245 | 210 | 188 | 3 | 22 | 8-18 | 345 |
| DN150 | 150 | 280 | 240 | 212 | 3 | 24 | 8-23 | 380 |
| DN200 | 200 | 335 | 295 | 268 | 3 | 26 | 12-23 | 500 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
