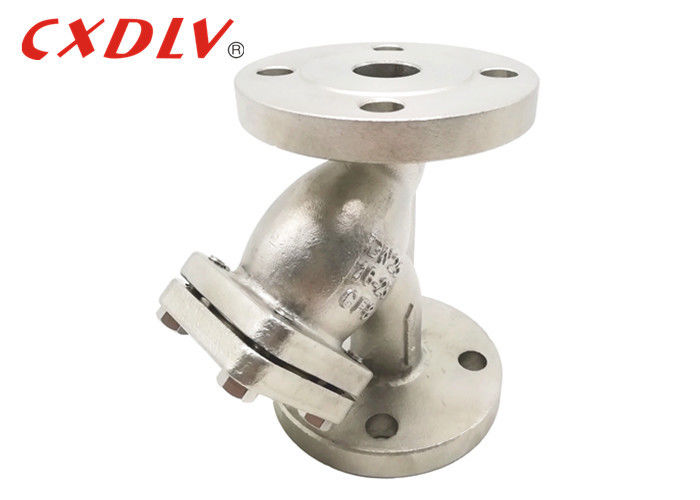

GB PN16 Oil Water Y Style Filter Valve High Temperature Remove Impurities

GB PN16 Oil Water Y Style Filter Valve High Temperature Remove Impurities

MOQ: 1 Piece
Price: Negotiation
Delivery Period: 7-30 days
Payment Method: L/C, T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
ISO9001:2008 CE
Model Number
GL41H
Body Material:
CF8/CF8M/CF3/CF3M/WCB
Screen:
CF8/CF8M/CF3/CF3M
Connection:
Flange End
Power:
Manual
GASKET:
GRAPHITE OR RUBBER
Pressure:
PN16
Highlight:

y type strainer

,

industrial y strainers

Product Description

                     GB PN16 Oil Water Y Style Filter Valve High Temperature Remove Impurities

Specifications
Nominal pressure: PN1.6-6.4
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180℃
Applicable media:Water.Oil.Gas



Application

     The filter has a casing, a sewage cover, a filter element, a filter screen and the like. The total area of the mesh is 3-4 times the area of the first section of the inlet pipe. It is used for pipeline removal and transportation medium: various mechanical impurities such as hot water, cold water, steam and compressed air, especially in the boiler room circulating water pump. Remove mechanical impurities from the system to protect equipment and piping from clogging and wear, with a pressure loss of 0.05-0.1 m water column at rated flow rate. It is used for all kinds of steam equipment, such as steam meters, steam traps, compressed air and all kinds of steam equipment.
GB PN16 Oil Water Y Style Filter Valve High Temperature Remove Impurities 0

SIZE d D D1 D2 t C n-φb L
DN15 15 95 65 45 2 14 4-14 120
DN20 20 105 75 58 2 14 4-14 140
DN25 25 115 85 68 2 14 4-14 155
DN32 32 135 100 78 2 16 4-18 180
DN40 40 145 110 88 3 16 4-18 200
DN50 50 160 125 102 3 16 4-18 220
DN65 65 180 145 122 3 18 4-18 250
DN80 80 195 160 138 3 20 8-18 280
DN100 100 215 180 158 3 20 8-18 320
DN125 125 245 210 188 3 22 8-18 345
DN150 150 280 240 212 3 24 8-23 380
DN200 200 335 295 268 3 26 12-23 500


 Feature


1. Y-type filter has high filtration precision and stable effluent quality.
2. Through its own retrieval and strain function, automatic backwashing, can cope with unstable water quality fluctuations, no need to dry
3. Y-type filter control system is sensitive, accurate operation, flexible according to different water sources and filtration accuracy
4. Cleaning is efficient and thorough, the system can be restored, the filter can be used for life, no need to replace.


 Package&Delivery

Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days

FAQ

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
