MOQ: | 1 Piece |
Price: | Negotiation |
Delivery Period: | 7-30 days |
Payment Method: | L/C, T/T, Western Union |

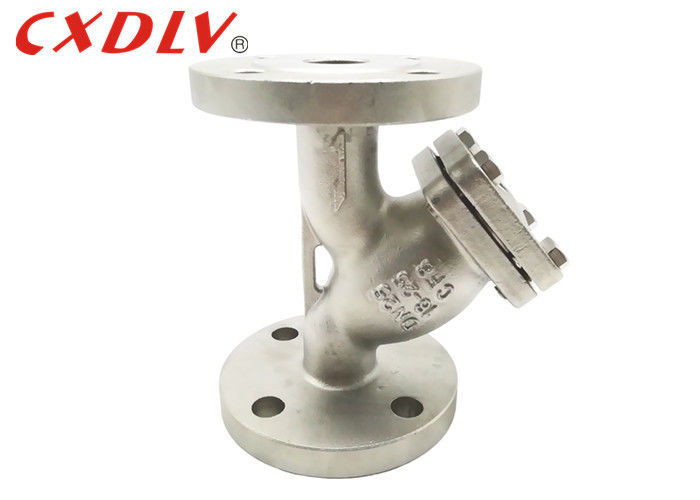

Water Pump Y Type Strainer Stainless Steel Material Double Flange Ends
Specifications
Nominal pressure: PN1.6-6.4
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180℃
Applicable media:Water.Oil.Gas
Application
Y-type filter is an indispensable filter device for conveying medium. I is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove particulate impurities in the medium to protect the valve. And the normal use of the equipment.
Applicable to: water, steam, oil and other media, the use temperature is generally 0 ~ 300 ° C, (note the specific use temperature is based on the filter design temperature) welded Y-type filter mainly includes: main body, filter, middle cover Plate, central plug, middle fasteners and other components.
SIZE | d | D | D1 | D2 | t | C | n-φb | L |
DN15 | 15 | 95 | 65 | 45 | 2 | 14 | 4-14 | 120 |
DN20 | 20 | 105 | 75 | 58 | 2 | 14 | 4-14 | 140 |
DN25 | 25 | 115 | 85 | 68 | 2 | 14 | 4-14 | 155 |
DN32 | 32 | 135 | 100 | 78 | 2 | 16 | 4-18 | 180 |
DN40 | 40 | 145 | 110 | 88 | 3 | 16 | 4-18 | 200 |
DN50 | 50 | 160 | 125 | 102 | 3 | 16 | 4-18 | 220 |
DN65 | 65 | 180 | 145 | 122 | 3 | 18 | 4-18 | 250 |
DN80 | 80 | 195 | 160 | 138 | 3 | 20 | 8-18 | 280 |
DN100 | 100 | 215 | 180 | 158 | 3 | 20 | 8-18 | 320 |
DN125 | 125 | 245 | 210 | 188 | 3 | 22 | 8-18 | 345 |
DN150 | 150 | 280 | 240 | 212 | 3 | 24 | 8-23 | 380 |
DN200 | 200 | 335 | 295 | 268 | 3 | 26 | 12-23 | 500 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
