Product Details:
Payment & Shipping Terms:
|
| Body Material: | CF8/CF8M/CF3/CF3M | Screen: | CF8/CF8M/CF3/CF3M |
|---|---|---|---|
| Spring Washers: | SUS304 | Temperature: | Normal Temperature |
| Medium: | Water.Air.gas | Pressure: | PN16 |
| High Light: | y type strainer,industrial y strainers |
||

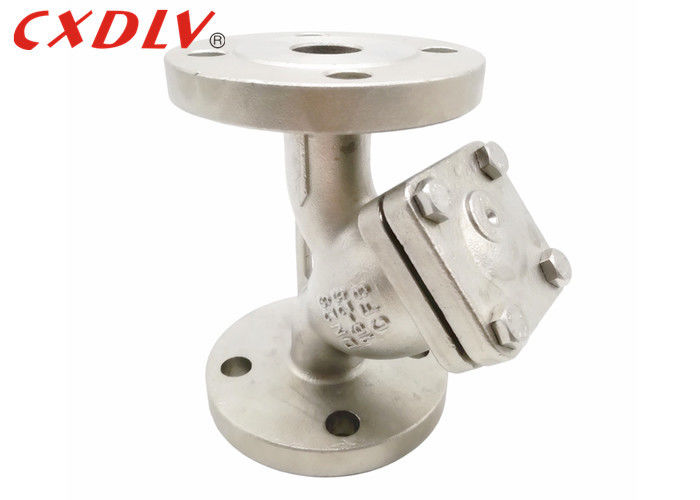

Casting Y Type Strainer Y Filter 2 Inch GB /ANSI Standard For Pipeline
Specifications
Nominal pressure: PN1.6-6.4
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180℃
Applicable media:Water.Oil.Gas
Application
The Y-filter is a filter that is required for the use of hydraulic control valves and precision, easily clogged mechanical products. It is an indispensable device for the pipeline series of conveying medium. It is usually installed at the inlet end of equipment such as hydraulic control valve, pressure reducing valve, pressure relief valve and fixed water level valve to eliminate impurities in the medium and prevent particulate impurities from entering. The passages create wall plugs to protect the fittings on the equipment piping from wear and blockage. The Y-type filter can also be combined with a telescopic section to have a Y-shaped drawbar telescopic filter with an adjustable installation length.
| SIZE | d | D | D1 | D2 | t | C | n-φb | L |
| DN15 | 15 | 95 | 65 | 45 | 2 | 14 | 4-14 | 120 |
| DN20 | 20 | 105 | 75 | 58 | 2 | 14 | 4-14 | 140 |
| DN25 | 25 | 115 | 85 | 68 | 2 | 14 | 4-14 | 155 |
| DN32 | 32 | 135 | 100 | 78 | 2 | 16 | 4-18 | 180 |
| DN40 | 40 | 145 | 110 | 88 | 3 | 16 | 4-18 | 200 |
| DN50 | 50 | 160 | 125 | 102 | 3 | 16 | 4-18 | 220 |
| DN65 | 65 | 180 | 145 | 122 | 3 | 18 | 4-18 | 250 |
| DN80 | 80 | 195 | 160 | 138 | 3 | 20 | 8-18 | 280 |
| DN100 | 100 | 215 | 180 | 158 | 3 | 20 | 8-18 | 320 |
| DN125 | 125 | 245 | 210 | 188 | 3 | 22 | 8-18 | 345 |
| DN150 | 150 | 280 | 240 | 212 | 3 | 24 | 8-23 | 380 |
| DN200 | 200 | 335 | 295 | 268 | 3 | 26 | 12-23 | 500 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
