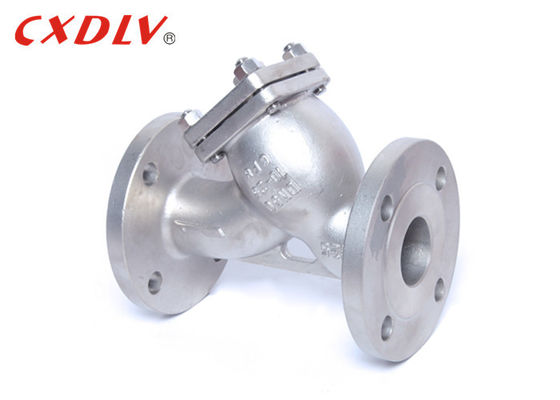

SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump

SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump
SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump

Large Image :  SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: GL41H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Body Material: CF8/CF8M/CF3/CF3M Screen: CF8/CF8M/CF3/CF3M
Gasket: PTFE Temperature: -25℃~180℃
Medium: Water.Air.gas Stopper: CF8M
High Light:

y type strainer


industrial y strainers

SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump




Size: 1/2"~12"

Material: CF8M/CF8,SS316/SS304,1.4408/1.4301,WCB

Design Standard: ASME B16.34 API 6D

Wall Thickness: ASME B16.34

Inspection/Testing: API598




The Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is filtered by the filter outlet. Discharge, when cleaning is required, just remove the detachable filter cartridge, re-load it after processing, so it is very convenient to use and maintain. The differential pressure switch monitors the pressure difference between the inlet and outlet. When the pressure difference reaches the set value, the electric controller sends the hydraulic control valve and drives the motor signal, triggering the following actions: the motor drives the brush to rotate, the filter element is cleaned, and the control valve is opened. For the sewage discharge, the entire cleaning process only lasts for several tens of seconds. When the cleaning is finished, the control valve is closed, the motor stops rotating, the system returns to its initial state, and the next filtration process begins. After the equipment is installed, the technician will debug and set the filtration time and cleaning conversion time. The water to be treated enters the body through the water inlet, and the filter starts to work normally.


SS Y Strainer Valve Water Sewage Filtration In Industrial Grade For Pump 0

1/2" 15 120 85 89 60.5 35 11.1 4 16
3/4" 20 140 87 98 70 43 11.1 4 16
1" 25 155 114 108 79.5 51 11.1 4 16
1 1/4" 32 180 114 117 89.5 64 12.7 4 16
1 1/2" 40 200 135 127 98.5 73 14.3 4 16
2" 50 220 155 152 120.5 92 15.9 4 19
2 1/2" 65 250 189 178 139.5 105 17.5 4 19
3" 80 280 200 190 152.5 127 19.1 4 19
4" 100 320 232 229 190.5 157 23.9 8 19
5" 125 345 274 254 216 186 23.9 8 22
6" 150 380 326 279 241.5 216 25.4 8 22
8" 200 500 397 343 298.5 270 28.6 8 22
10" 250 / 512 405 362 324 30.2 12 25
12" 300 605 562 483 432 381 31.8 12 25




1. Y-type filter is an indispensable high-efficiency filtering equipment in the purification equipment engineering. It has played a great role in the treatment of domestic wastewater and industrial wastewater. With the advantages of design and application, it is now ready. Be favored.
2. Y-type filters effectively handle a large amount of domestic and industrial wastewater in various industries, so that valuable water resources can be effectively reused, saving a lot of water resources. The advantages of the Y-type filter operation include full automation, maintenance-free, large filter area, high filter efficiency, long service life, stainless steel material, optional filtration accuracy and complete specifications. It is one of the most effective equipment in water reuse engineering compared to other filtration equipment. Moreover, the water quality after being treated by the Y-type filter not only meets the discharge standards stipulated by the state, but also the purpose of recycling and recycling of water.




Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days




Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
