| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

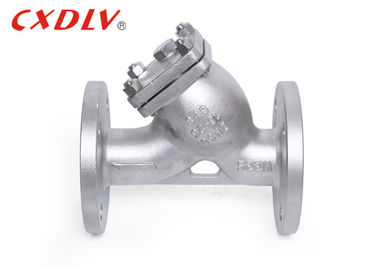

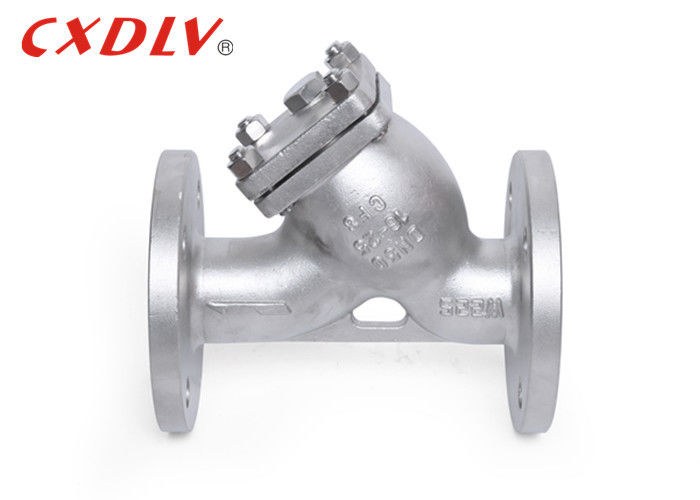

Natural Gas Industrial Y Strainers Valve Carbon Steel A216 2 Inch
Specifications
Size: 1/2"~12"
Material: CF8M/CF8,SS316/SS304,1.4408/1.4301,WCB
Design Standard: ASME B16.34 API 6D
Wall Thickness: ASME B16.34
Inspection/Testing: API598
Application
The Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is filtered by the filter outlet. Discharge, when cleaning is required, just remove the detachable filter cartridge, re-load it after processing, so it is very convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device for conveying the pipeline system. Its function is to filter mechanical impurities in the medium, which can be used for rust, sand and small solids in the liquid. Filtration of particles and the like to protect the fittings on the equipment piping from wear and clogging can protect the normal operation of the equipment.
| SIZE | d | L | H | D | C | G | T | N | M |
| 1/2" | 15 | 120 | 85 | 89 | 60.5 | 35 | 11.1 | 4 | 16 |
| 3/4" | 20 | 140 | 87 | 98 | 70 | 43 | 11.1 | 4 | 16 |
| 1" | 25 | 155 | 114 | 108 | 79.5 | 51 | 11.1 | 4 | 16 |
| 1 1/4" | 32 | 180 | 114 | 117 | 89.5 | 64 | 12.7 | 4 | 16 |
| 1 1/2" | 40 | 200 | 135 | 127 | 98.5 | 73 | 14.3 | 4 | 16 |
| 2" | 50 | 220 | 155 | 152 | 120.5 | 92 | 15.9 | 4 | 19 |
| 2 1/2" | 65 | 250 | 189 | 178 | 139.5 | 105 | 17.5 | 4 | 19 |
| 3" | 80 | 280 | 200 | 190 | 152.5 | 127 | 19.1 | 4 | 19 |
| 4" | 100 | 320 | 232 | 229 | 190.5 | 157 | 23.9 | 8 | 19 |
| 5" | 125 | 345 | 274 | 254 | 216 | 186 | 23.9 | 8 | 22 |
| 6" | 150 | 380 | 326 | 279 | 241.5 | 216 | 25.4 | 8 | 22 |
| 8" | 200 | 500 | 397 | 343 | 298.5 | 270 | 28.6 | 8 | 22 |
| 10" | 250 | / | 512 | 405 | 362 | 324 | 30.2 | 12 | 25 |
| 12" | 300 | 605 | 562 | 483 | 432 | 381 | 31.8 | 12 | 25 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
|
|
