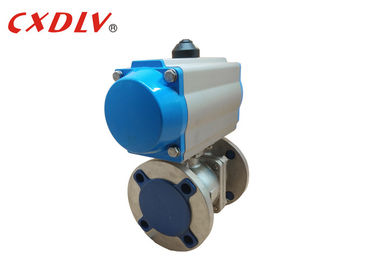

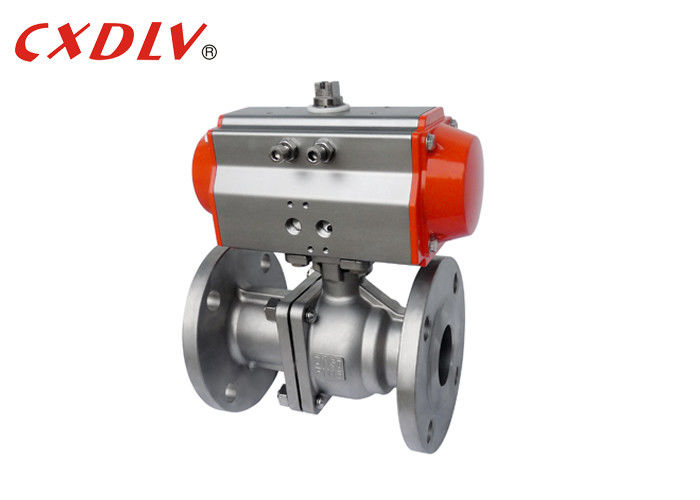

Flange Industrial Pneumatic Actuated Ball Valve SS Water Control Valve WCB Rotary
Specifications
Advantage
1. Easy to operate, open and close quickly, from full open to full off as long as rotated 90 °, easy to control over long distances.
2. the maintenance is convenient, the ball valve is simple in structure, the sealing ring is generally active, and it is convenient to disassemble and replace.
3. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes, it will not cause erosion of the sealing surface of the valve.
Technical Data
Double Acting Pneumatic Actuator Ordering No.
Double Acting |
Model No | Torque(5.5Bar) |
ACT 042D | 8.4Nm | |
ACT 050D | 18.3Nm | |
ACT 063D | 32.2Nm | |
ACT 075D | 64Nm | |
ACT 090D | 101Nm | |
ACT 100D | 146Nm | |
ACT 115D | 236Nm | |
ACT 125D | 305Nm | |
ACT 145D | 478Nm | |
ACT 160D | 624Nm | |
ACT 190D | 1185Nm | |
ACT 210D | 1447Nm | |
ACT 240D | 2126Nm | |
ACT 270D | 3229Nm | |
ACT 300D | 4197Nm | |
ACT 350D | 6283Nm | |
ACT 400D | 8953Nm |
Ball Valve Parameter(DN15~DN200)
PN(Mpa) | DN | L | φE | φB | φC | T | f | N-φh | H |
1.6 | 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 | 48 |
20 | 140 | 105 | 75 | 55 | 14 | 2 | 4-14 | 53 | |
25 | 150 | 115 | 85 | 65 | 14 | 2 | 4-14 | 64 | |
32 | 165 | 135 | 100 | 78 | 16 | 2 | 4-18 | 71 | |
40 | 180 | 145 | 110 | 85 | 16 | 3 | 4-18 | 76 | |
50 | 200 | 160 | 125 | 100 | 16 | 3 | 4-18 | 85 |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
More Selection
Standard | ANSI | GB | JIS | DIN |
Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner |
