| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

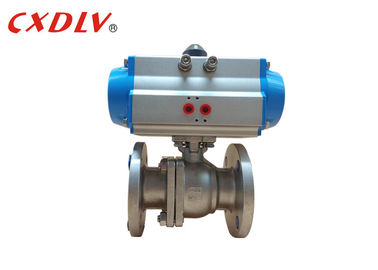

DIN Double Acting 2 Way Stainless Steel Pneumatic Valves DN50 Flange Ends
Specifications
Advantage
1. Compact Size and Light weight Construction
2. Reliable, Long Lasting Performance
3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations
4. Spring-Return Design Accommodates Air Supply as Low as 50 psi
5. Stainless Steel External Trim and FKM O-Rings Standard
6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash
7. Manual Override Standard
Technical Data
Double Acting Pneumatic Actuator Ordering No.
| Double Acting |
Model No | Torque(5.5Bar) |
| ACT 042D | 8.4Nm | |
| ACT 050D | 18.3Nm | |
| ACT 063D | 32.2Nm | |
| ACT 075D | 64Nm | |
| ACT 090D | 101Nm | |
| ACT 100D | 146Nm | |
| ACT 115D | 236Nm | |
| ACT 125D | 305Nm | |
| ACT 145D | 478Nm | |
| ACT 160D | 624Nm | |
| ACT 190D | 1185Nm | |
| ACT 210D | 1447Nm | |
| ACT 240D | 2126Nm | |
| ACT 270D | 3229Nm | |
| ACT 300D | 4197Nm | |
| ACT 350D | 6283Nm | |
| ACT 400D | 8953Nm |
DIN PN16 Ball Valve Parameter(DN15~DN200)
| PN(Mpa) | DN | L | φE | φB | φC | T | f |
| 1.6 | 15 | 115 | 95 | 65 | 45 | 16 | 2 |
| 20 | 120 | 105 | 75 | 58 | 18 | 2 | |
| 25 | 125 | 115 | 85 | 68 | 18 | 2 | |
| 32 | 130 | 140 | 100 | 78 | 18 | 2 | |
| 40 | 140 | 150 | 110 | 88 | 18 | 3 | |
| 50 | 150 | 165 | 125 | 102 | 18 | 3 |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
More Selection
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner | |||
|
|
