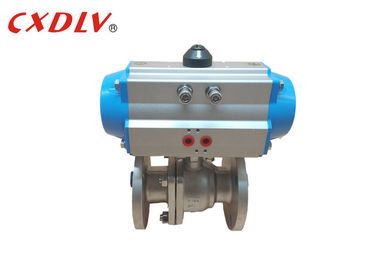

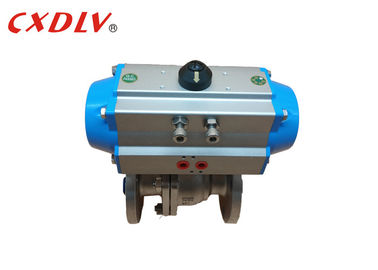

SS316 2PC Full Port Air Pneumatic Actuated Ball Valve Q641F JIS10K 50A
Specifications
Advantage
1. Compact Size and Light weight Construction
2. Reliable, Long Lasting Performance
3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations
4. Spring-Return Design Accommodates Air Supply as Low as 50 psi
5. Stainless Steel External Trim and FKM O-Rings Standard
6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash
7. Manual Override Standard
Technical Data
Single Acting Pneumatic Actuator Ordering No.
| Model No | Torque(6Bar) | |
| Open | Close | |
| ACT 050S | 13.2Nm | 6.7Nm |
| ACT 063S | 24.1Nm | 11.1Nm |
| ACT 075S | 47.7Nm | 22.1Nm |
| ACT 090S | 73.1Nm | 36.7Nm |
| ACT 100S | 109Nm | 50.7Nm |
| ACT 115S | 176Nm | 82Nm |
| ACT 125S | 227Nm | 105Nm |
| ACT 145S | 357Nm | 165Nm |
| ACT 160S | 456Nm | 224Nm |
| ACT 190S | 871Nm | 379Nm |
| ACT 210S | 1000Nm | 521Nm |
| ACT 240S | 1423Nm | 721Nm |
| ACT 270S | 2345Nm | 1060Nm |
| ACT 300S | 2956Nm | 1460Nm |
| ACT 350S | 4247Nm | 2346Nm |
| ACT 400S | 6559Nm | 2624Nm |
JIS Standard Ball Valve Parameter(15A~200A)
| Pressure | Size | φD | L | φE | φB | φC | T |
| JIS 10K | 15 | 15 | 108 | 95 | 70 | 52 | 12 |
| 20 | 20 | 117 | 100 | 75 | 58 | 14 | |
| 25 | 25 | 127 | 125 | 90 | 70 | 14 | |
| 32 | 32 | 140 | 135 | 100 | 80 | 16 | |
| 40 | 38 | 165 | 140 | 105 | 85 | 16 | |
| 50 | 50 | 178 | 155 | 120 | 100 | 16 |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
More Selection
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner | |||
|
|
