Double Acting Flange Pneumatic Actuated Ball Valve Control Valve 150LB
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO |
| Model Number: | Q641F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Body Material: | CF8 | Seat Material: | PTFE |
|---|---|---|---|
| Power: | Spring Return Actuator | Connection: | Double Flange |
| Valve Size: | 1/2"~8" | Medium: | Water Oil Gas |
| Highlight: | double acting pneumatic valve,pneumatic operated ball valve |
||
Product Description

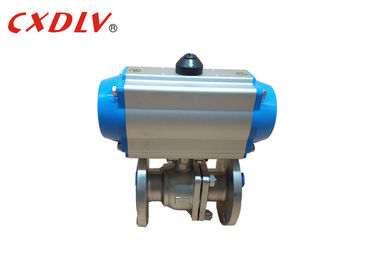

Double Acting Flange Pneumatic Actuated Ball Valve Control Valve 150LB
Specifications
- Rack and pinion design rotary quarter turn pneumatic actuator
- Double Acting or Spring Return Version
- ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
- Suitable for indoor and outdoor application
- Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
- Aluminium alloy housing with nickel plated pinion
- Travel angle 90° with travel stop adjustment of ± 5℃
- Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃
Advantage
1. Compact Size and Light weight Construction
2. Reliable, Long Lasting Performance
3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations
4. Spring-Return Design Accommodates Air Supply as Low as 50 psi
5. Stainless Steel External Trim and FKM O-Rings Standard
6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash
7. Manual Override Standard
Technical Data
Double Acting Pneumatic Actuator Ordering No.
| Double Acting |
Model No | Torque(5.5Bar) |
| ACT 042D | 8.4Nm | |
| ACT 050D | 18.3Nm | |
| ACT 063D | 32.2Nm | |
| ACT 075D | 64Nm | |
| ACT 090D | 101Nm | |
| ACT 100D | 146Nm | |
| ACT 115D | 236Nm | |
| ACT 125D | 305Nm | |
| ACT 145D | 478Nm | |
| ACT 160D | 624Nm | |
| ACT 190D | 1185Nm | |
| ACT 210D | 1447Nm | |
| ACT 240D | 2126Nm | |
| ACT 270D | 3229Nm | |
| ACT 300D | 4197Nm | |
| ACT 350D | 6283Nm | |
| ACT 400D | 8953Nm |
150LB Ball Valve Parameter(1/2"~8")
| Pressure | Size | φD | L | φE | φB | φC | T | f |
| Class150 | 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 1.6 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 1.6 | |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 1.6 | |
| 1 1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 1.6 | |
| 1 1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 1.6 | |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 1.6 |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
More Selection
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner | |||
