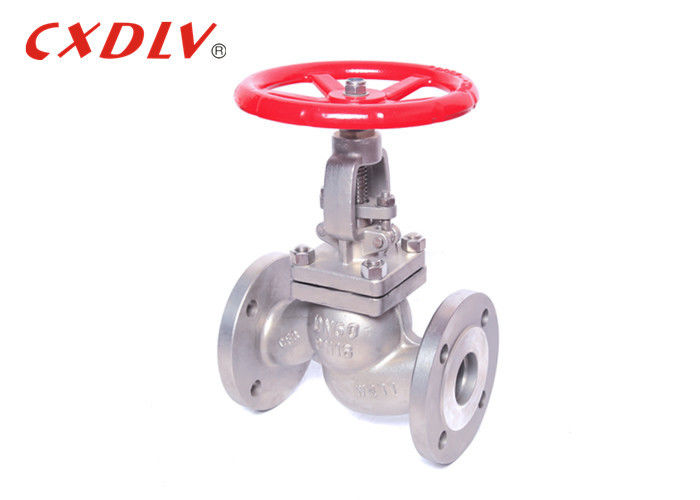

GB CFM8 Stainless Steel Globe Valve Flanged Type Full Bore Stop Valve
Specifications
- Design Standard:GB/T2224-2005
- Inspection & Test: JB/T9092-1999
- Face To Face: GB/T12221-2005
- Pressure testing: GB/T13927-1992
Application
The shut-off valve, also called the door, is the most widely used type of valve. It is popular because of the small friction between the sealing surfaces during the opening and closing process. It is relatively durable, the opening height is not large, and the manufacturing is easy. Convenient, not only for medium and low pressure, but also for high pressure. The closing principle of the shut-off valve is that, relying on the pressure of the valve bar, the sealing surface of the valve disc and the sealing surface of the valve seat are closely fitted to prevent the medium from circulating.
| DN | L | D | D1 | D2 | b | Z-φd | H | D0 |
| 15 | 130 | 95 | 65 | 46 | 14 | 4-14 | 188 | 140 |
| 20 | 150 | 105 | 75 | 56 | 16 | 4-16 | 188 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4-16 | 212 | 140 |
| 32 | 190 | 135 | 110 | 78 | 18 | 4-18 | 285 | 160 |
| 40 | 200 | 150 | 110 | 84 | 18 | 4-18 | 246 | 160 |
| 50 | 230 | 165 | 125 | 99 | 20 | 4-20 | 252 | 200 |
| 65 | 290 | 185 | 145 | 115 | 20 | 4-20 | 308 | 200 |
| 80 | 310 | 200 | 160 | 132 | 22 | 8-20 | 327 | 250 |
| 100 | 350 | 220 | 180 | 155 | 22 | 8-22 | 384 | 250 |
| 125 | 400 | 250 | 210 | 184 | 22 | 8-22 | 484 | 300 |
| 150 | 480 | 285 | 240 | 211 | 24 | 8-24 | 547 | 350 |
| 200 | 600 | 340 | 295 | 265 | 24 | 12-24 | 660 | 350 |
Feature
1. Simple structure, convenient manufacturing and maintenance.
2. The working stroke is small and the opening and closing time is short.
3. Good sealing, small friction between sealing surfaces, long life.
4. The structure of the shut-off valve body is straight-through, direct-flow and right-angle. Straight-through is the most common structure, but its fluid resistance is greatest. DC fluid resistance is small, and it is mostly used for fluids containing solid particles or high viscosity. The right angle valve body is mostly forged, suitable for small through, high pressure shut-off valves.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
