| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

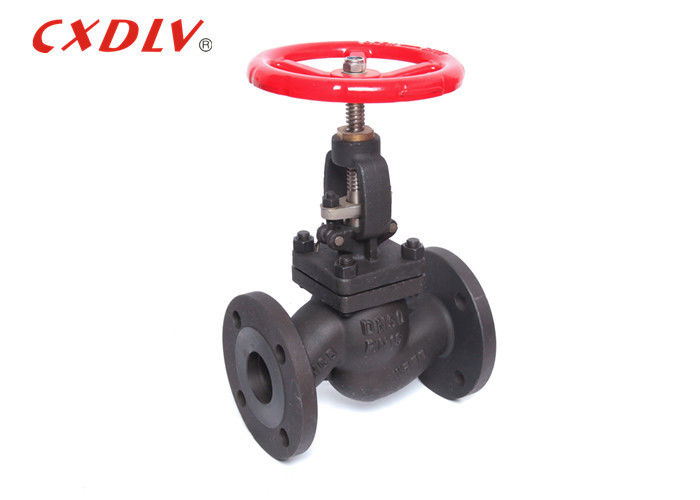

Manual Carbon Steel Globe Valve Flanged Type Steam WCB For Gas , Oil
Specifications
- Design Standard:GB/T2224-2005
- Inspection & Test: JB/T9092-1999
- Face To Face: GB/T12221-2005
- Pressure testing: GB/T13927-1992
Application
The sealing pair of the globe valve is composed of a valve sealing surface and a valve seat sealing surface, and the valve stem drives the valve flap to move vertically along the center line of the valve seat. During the opening and closing process of the shut-off valve, the opening height is small, the flow rate is easy to adjust, and the manufacturing and maintenance are convenient, and the pressure is applicable to a wide range.
| DN | L | D | D1 | D2 | b | Z-φd | H | D0 |
| 15 | 130 | 95 | 65 | 46 | 14 | 4-14 | 188 | 140 |
| 20 | 150 | 105 | 75 | 56 | 16 | 4-16 | 188 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4-16 | 212 | 140 |
| 32 | 190 | 135 | 110 | 78 | 18 | 4-18 | 285 | 160 |
| 40 | 200 | 150 | 110 | 84 | 18 | 4-18 | 246 | 160 |
| 50 | 230 | 165 | 125 | 99 | 20 | 4-20 | 252 | 200 |
| 65 | 290 | 185 | 145 | 115 | 20 | 4-20 | 308 | 200 |
| 80 | 310 | 200 | 160 | 132 | 22 | 8-20 | 327 | 250 |
| 100 | 350 | 220 | 180 | 155 | 22 | 8-22 | 384 | 250 |
| 125 | 400 | 250 | 210 | 184 | 22 | 8-22 | 484 | 300 |
| 150 | 480 | 285 | 240 | 211 | 24 | 8-24 | 547 | 350 |
| 200 | 600 | 340 | 295 | 265 | 24 | 12-24 | 660 | 350 |
Feature
1. The globe valve, also called the door, is the most widely used type of valve. It is popular because of the small friction between the sealing surfaces during the opening and closing process. It is relatively durable, the opening height is not large, and the manufacturing is easy. Convenient, not only for medium and low pressure, but also for high pressure.
2. The closing principle of the globe valve is that, relying on the pressure of the valve bar, the sealing surface of the valve disc and the sealing surface of the valve seat are closely fitted to prevent the medium from circulating.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
