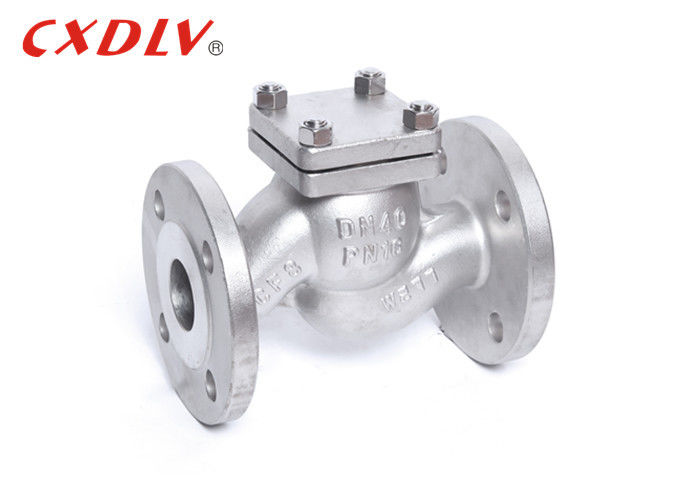

Globe Stop Flange Lifting Non Return Valve High Pressure SS316 WCB
Specifications
1.Design and manufacture: GB/T12235
2.Face to face dimensions: GB/T12221
3.End flange dimension: JB/T79
4.Pressure test: JB/T9092
Application
The flange lift check valve is a check valve that slides along the vertical centerline of the valve body. The lift check valve can only be installed on the horizontal pipe. The high pressure small diameter check valve disc can be used. The spherical shape of the lift check valve is the same as that of the shut-off valve (common to the shut-off valve), so its fluid resistance coefficient is large, but the sealing is better than the swing type.
| DN | L | D | D1 | D2 | b | Z-φd | H |
| 15 | 130 | 95 | 65 | 45 | 14 | 4-φ14 | 77 |
| 20 | 150 | 105 | 75 | 55 | 14 | 4-φ14 | 77 |
| 25 | 160 | 115 | 85 | 65 | 14 | 4-φ14 | 80 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-φ18 | 85 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4-φ18 | 95 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4-φ18 | 105 |
| 65 | 290 | 180 | 145 | 125 | 18 | 4-φ18 | 120 |
| 80 | 310 | 195 | 160 | 145 | 20 | 8-φ18 | 130 |
| 100 | 350 | 215 | 180 | 160 | 20 | 8-φ18 | 140 |
| 125 | 400 | 245 | 210 | 180 | 22 | 8-φ18 | 155 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-φ23 | 180 |
| 200 | 600 | 335 | 295 | 265 | 26 | 12-φ23 | 211 |
| 250 | 730 | 405 | 355 | 320 | 30 | 12-φ25 | 260 |
| 300 | 850 | 460 | 410 | 375 | 34 | 12-φ25 | 323 |
Feature
1. The flange lifting check valve is designed and manufactured according to the national standard GB/T12235.
2. Various pipe flange standards and flange seal types can be used to meet various engineering needs and user requirements.
3. the valve body material is complete, the gasket can be reasonably matched according to the actual working conditions or user requirements, and can be applied to various pressure, temperature and medium working conditions. The check valve can be designed and manufactured according to user requirements and can be used for various equipments.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
