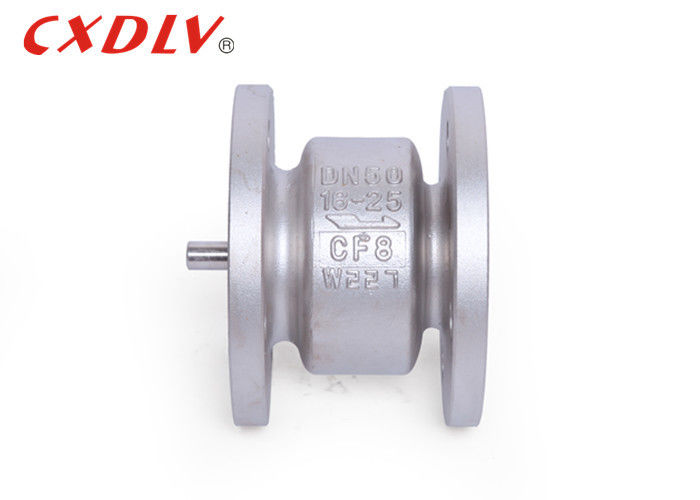

H41 Flange Connection Vertical Muffler Check Valve Non Return Valve CF8M

H41 Flange Connection Vertical Muffler Check Valve Non Return Valve CF8M

MOQ: 1 Piece
Price: Negotiation
Delivery Period: 7-30 days
Payment Method: L/C, T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
ISO9001:2008 CE
Model Number
H41
Disc Material:
CF8M/CF8/CF3/CF3M/WCB
Temperature:
-29℃~500℃
Medium:
Water.Air.Oil
Size:
DN100~DN125
Pressure:
PN16
Standard:
GB
Highlight:

wafer type check valve

,

wafer non return valve

Product Description

H41 Flange Connection Vertical Muffler Check Valve Non Return Valve CF8M



 Specifications



Manufacturing and testing

- GB/T12224-2005

Other technical requirements

- GB/T12235-2005

Connection flange

- JB79

Test and inspection

- GB/T13927



 Application



      Silence check valve consists of valve body, seat, diversion shuttle, disc, bearing and spring etc...The bore is flow-line designed so pressure loss is very little. The disc's stroke is very short and when stop the pump the valve can close quickly and prevent the great noise from water-hammering so the valve can close quietly without any noise. It is widely used in feeding/draining system, fire protection and heat supplying system, and it is installed at the outlet of the pump to prevent backward fluid's and water-hammering's damage to the pump.

H41 Flange Connection Vertical Muffler Check Valve Non Return Valve CF8M 0

DN L D D1 b Z-φd
100 165 215 180 20 8-18
125 190 245 210 22 8-18
150 210 280 240 24 8-22
200 255 335 295 26 8-22
250 310 380 350 28 12-22
300 330 440 400 28 12-22





 Feature



1. Silent Operation - fast closure to prevent check valve slam water hammer
2. Precision metal-to-metal seating
3. It has the advantages of small size, light weight, low fluid resistance, fatigue resistance and long life.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days
