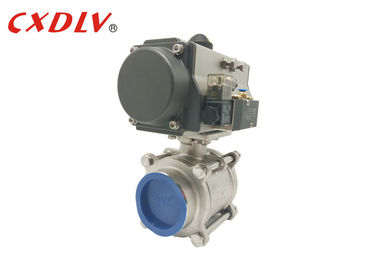

3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve

3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve
3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve 3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve

Large Image :  3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q611F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Body Material: Stainless Steel Seat Material: PTFE
Power: Spring Return Actuator Connection: BSP/BSPT/NPT
Size: 1/2"~8" Medium: Water Oil Gas
High Light:

pneumatic operated ball valve

,

pneumatic operated valve

3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve


 Specifications

  • Rack and pinion design rotary quarter turn pneumatic actuator
  • Double Acting or Spring Return Version
  • ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
  • Suitable for indoor and outdoor application
  • Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
  • Aluminium alloy housing with nickel plated pinion
  • Travel angle 90° with travel stop adjustment of ± 5℃
  • Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃


 Advantage

1. Compact Size and Light weight Construction

2. Reliable, Long Lasting Performance

3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations

4. Spring-Return Design Accommodates Air Supply as Low as 50 psi

5. Stainless Steel External Trim and FKM O-Rings Standard

6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash

7. Manual Override Standard


 Technical Data
Double Acting Pneumatic Actuator Ordering No.

3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve 0

Double
Acting
Model No Torque(5.5Bar)
ACT 042D 8.4Nm
ACT 050D 18.3Nm
ACT 063D 32.2Nm
ACT 075D 64Nm
ACT 090D 101Nm
ACT 100D 146Nm
ACT 115D 236Nm
ACT 125D 305Nm
ACT 145D 478Nm
ACT 160D 624Nm
ACT 190D 1185Nm
ACT 210D 1447Nm
ACT 240D 2126Nm
ACT 270D 3229Nm
ACT 300D 4197Nm
ACT 350D 6283Nm
ACT 400D 8953Nm


 Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

 Model Selection
3PC Thread Pneumatic Ball Valve

Product Name 3PC Thread Ball Valve
Pressure 1000WOG
Valve Matreial CF8/SS304 CF8M/SS316 WCB
Connection BSP/BSPT/NPT



3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve 1
