| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

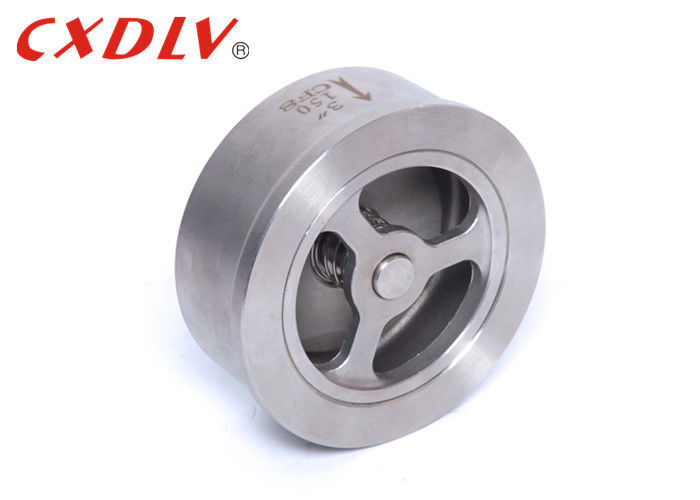

API Class 150 Lift 4 Inch Wafer Check Valve Metal Seated With Spring
Specifications
Design According to API 594
Face to face according to API594
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API 598
Materials: CF8M (SS316), CF8 (SS304), DIN4.4408/4.4308 Available
Working Pressure: 150LB~300LB
Suitable Temp.: -196ºC~550ºC( Different temp. for different material)
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Application
The valve flap of the lift check valve is disc-shaped and rotates around the shaft of the valve seat passage. The flow passage is streamlined and the flow resistance is smaller than that of the butterfly check valve. It is suitable for low flow rate and flow. Frequently changing large diameter applications, but not suitable for pulsating flow, the sealing performance is not as good as lifting. The butterfly check valve is divided into three types: single-valve, double-valve and multi-half. These three forms are mainly divided according to the valve diameter. The purpose is to prevent the hydraulic shock from being weakened when the medium stops flowing or reverses.
| SIZE | L | D |
| 1/2" | 22 | 46 |
| 3/4" | 22 | 56 |
| 1" | 22 | 65 |
| 1 1/4" | 28 | 74 |
| 1 1/2" | 31.5 | 84 |
| 2" | 40 | 103 |
| 2 1/2" | 46 | 122 |
| 3" | 50 | 135 |
| 4" | 60 | 173 |
| 5" | 90 | 195 |
| 6" | 106 | 220 |
| 8" | 140 | 227 |
Feature
The clamp lift check valve is composed of a valve body, a valve flap, a spring, etc., and is horizontally or vertically installed in the pipeline system to prevent the medium from flowing backward, has a short structure, small volume, and light weight; the valve flap is closed quickly, and the water hammer pressure is small. The flow path is unobstructed, the fluid resistance is small, the action is sensitive, and the sealing performance is good.
Why choose us?
Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
