| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

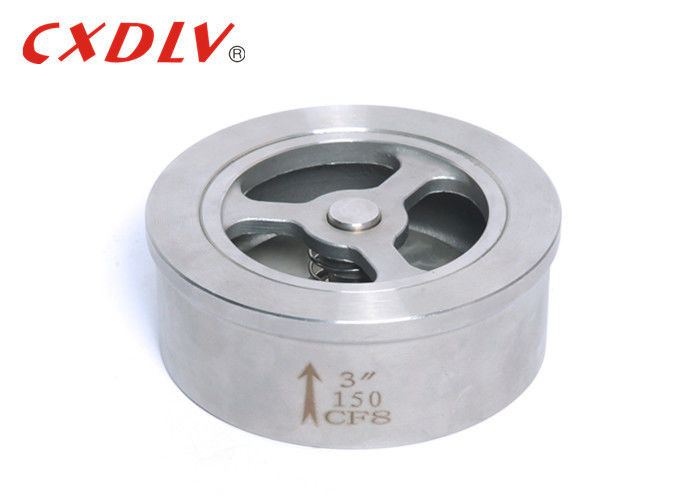

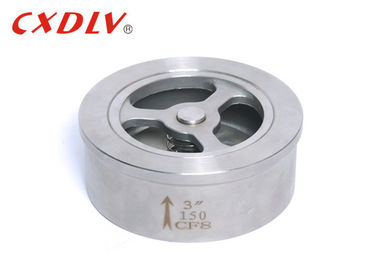

DIN High Temperature Wafer Check Valve Lift Type Precision Casting
Specifications
Design According to API 594
Face to face according to API594
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API 598
Materials: CF8M (SS316), CF8 (SS304), DIN4.4408/4.4308 Available
Working Pressure: PN16~PN40
Suitable Temp.: -196ºC~550ºC( Different temp. for different material)
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Application
The H41 flange-connected lift check valve for domestic use has the advantages of bulky volume, large fluid resistance, high water hammer pressure when the valve is closed, difficult installation and maintenance, and short service life. The valve supply network has developed and produced a pair of clip type check valves for the problems of the traditional flange structure check valves.Straight-flow lift check valves are generally only installed in horizontal lines, while vertical lift check valves are generally installed in vertical lines.
| SIZE | L | D |
| 15 | 25 | 52 |
| 20 | 25 | 62 |
| 25 | 30 | 72 |
| 32 | 32 | 83 |
| 40 | 38 | 93 |
| 50 | 45 | 108 |
| 65 | 50 | 128 |
| 80 | 60 | 142 |
| 100 | 75 | 168 |
| 125 | 85 | 194 |
| 150 | 102 | 224 |
| 200 | 110 | 291 |
| 250 | 150 | 353 |
| 300 | 185 | 418 |
Feature
1.The utility model has the advantages of short structure, small volume and light weight;
2. The structure and length are short, and the structure length is only 1/4-1/8 of the traditional flange check valve.
3. Small size, light weight, its weight is only the traditional flange check valve 1/4-1/20
4. The valve flap is closed quickly, the water hammer pressure is small
5. Horizontal pipe or vertical pipe can be used, easy to install
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
