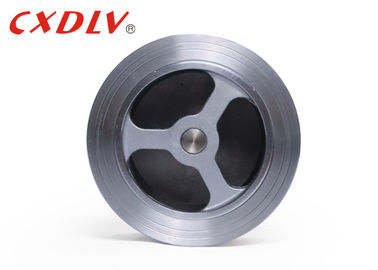

Disc Shaped Wafer Lift Check Valve DN200 DN300 Long Lasting CF3 / CF3M
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | ISO9001:2008 CE |
| Model Number: | H71 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 7-30 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Disc Material: | CF8M/CF8/CF3/CF3M/WCB | Temperature: | -29℃~500℃ |
|---|---|---|---|
| Medium: | Water.Air.Oil | Size: | DN65~DN80 |
| Pressure: | PN16 | Standard: | DIN |
| Highlight: | wafer type check valve,wafer non return valve |
||
Product Description
Disc Shaped Wafer Lift Check Valve DN200 DN300 Long Lasting CF3 / CF3M
Specifications
Design According to API 594
Face to face according to API594
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API 598
Materials: CF8M (SS316), CF8 (SS304), DIN4.4408/4.4308 Available
Working Pressure: PN16~PN40
Suitable Temp.: -196ºC~550ºC( Different temp. for different material)
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Application
Lifting check valve: The check valve sliding along the vertical centerline of the valve body. The internal thread check valve can only be installed on the horizontal pipe. On the high pressure small diameter check valve, the valve ball can be used. The butterfly check valve has the same valve body shape as the shut-off valve (common to the shut-off valve), so its fluid resistance coefficient is large.
| SIZE | L | D |
| 15 | 25 | 52 |
| 20 | 25 | 62 |
| 25 | 30 | 72 |
| 32 | 32 | 83 |
| 40 | 38 | 93 |
| 50 | 45 | 108 |
| 65 | 50 | 128 |
| 80 | 60 | 142 |
| 100 | 75 | 162 |
| 125 | 85 | 192 |
| 150 | 102 | 218 |
| 200 | 110 | 273 |
| 250 | 150 | 329 |
| 300 | 185 | 384 |
Feature
2. The valve flap is closed quickly and the action is sensitive.
3. Close the impact force is small, not easy to produce water hammer phenomenon.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
