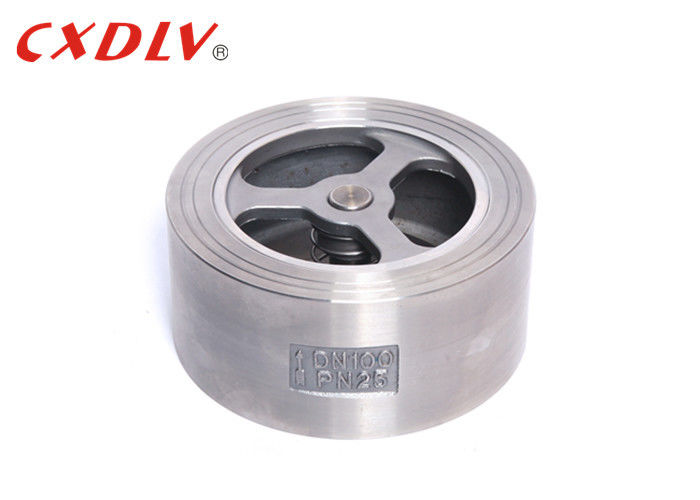

API Class Wafer Type Lift Check Valve For Some Corrosive Liquid

API Class Wafer Type Lift Check Valve For Some Corrosive Liquid

MOQ: 1 Piece
Price: Negotiation
Delivery Period: 7-30 days
Payment Method: L/C, T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
ISO9001:2008 CE
Model Number
H71
Disc Material:
CF8M/CF8/CF3/CF3M/WCB
Temperature:
-29℃~500℃
Medium:
Water.Air.Oil
Size:
DN32~DN50
Pressure:
PN16
Standard:
DIN
Highlight:

wafer type check valve

,

wafer swing check valve

Product Description

API Class Wafer Type Lift Check Valve For Some Corrosive Liquid​



 Specifications



Design According to API 594
Face to face according to API594
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to API 598
Materials: CF8M (SS316), CF8 (SS304), DIN4.4408/4.4308 Available
Working Pressure: PN16~PN40
Suitable Temp.: -196ºC~550ºC( Different temp. for different material)
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid



 Application



The valve flap of the imported H71W lift-type check valve is disc-shaped, and rotates around the shaft of the valve seat passage. Because the valve passage is streamlined, the flow resistance is smaller than that of the butterfly check valve, which is suitable for low Large diameter applications where flow rates and flow do not change very often. Install horizontally or vertically in the piping system to prevent backflow of media.Its various indicators are superior to any of the currently available upper return valves. Its application is widely used in water supply and drainage, fire protection, construction, HVAC, industrial systems. Any medium such as water, gas, oil, acid, lye, hydrogen, ammonia, special fire protection pipes can be used. For example, it can be installed at the outlet of the pump to avoid water hammer, water hammer and destructive impact, to prevent backflow and protect equipment, and to have better energy saving effect.





API Class Wafer Type Lift Check Valve For Some Corrosive Liquid 0





SIZE L D
15 25 52
20 25 62
25 30 72
32 32 83
40 38 93
50 45 108
65 50 128
80 60 142
100 75 162
125 85 192
150 102 218
200 110 273
250 150 329
300 185 384



 Feature



The valve flap of the clamp check valve has a short stroke, the valve flap is light, and the spring is assisted to close, and the valve closing speed is fast. The structure has short length, small volume, light weight, small fluid resistance, reliable sealing, stable opening and closing, wear resistance, long service life, oil pressure, slow closing without medium influence, and good energy saving effect. It brings great convenience to the installation, handling, storage and arrangement of the valve, and can save a lot of materials and reduce the cost.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

API Class Wafer Type Lift Check Valve For Some Corrosive Liquid 1
