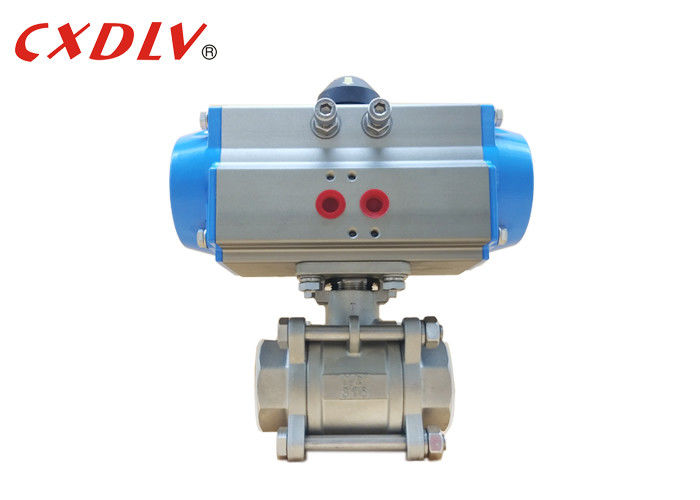

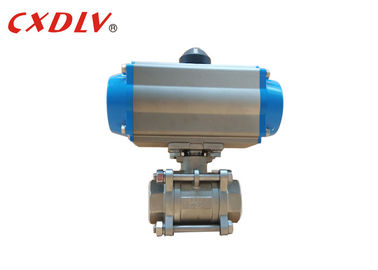

Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water

Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water
Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water

Large Image :  Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q611F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Body Material: CF8,CF8M,WCB,CF3,CF3M Seat Material: PTFE
Power: Spring Return Actuator Standard: GB,ANSI,JIS,DIN
Size: 1/2"~8" Medium: Water Oil Gas
High Light:

double acting pneumatic valve

,

pneumatic operated ball valve

Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water


 Specifications

  • Rack and pinion design rotary quarter turn pneumatic actuator
  • Double Acting or Spring Return Version
  • ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
  • Suitable for indoor and outdoor application
  • Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
  • Aluminium alloy housing with nickel plated pinion
  • Travel angle 90° with travel stop adjustment of ± 5℃
  • Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃


 Advantage
1. Type Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
2. Size & Connections 6mm (1/4″) to 100mm (4″) BSP Female (NPT, BSPT on request)
3. Duty Air : Inert Gas : Oil : Process : Steam : Water
4. Materials Stainless Steel Body, Ball & Stem : RPTFE Seat


 Technical Data
Single Acting Pneumatic Actuator Ordering No.

Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water 0



Model No Torque(6Bar)
Open Close
ACT 050S 13.2Nm 6.7Nm
ACT 063S 24.1Nm 11.1Nm
ACT 075S 47.7Nm 22.1Nm
ACT 090S 73.1Nm 36.7Nm
ACT 100S 109Nm 50.7Nm
ACT 115S 176Nm 82Nm
ACT 125S 227Nm 105Nm
ACT 145S 357Nm 165Nm
ACT 160S 456Nm 224Nm
ACT 190S 871Nm 379Nm
ACT 210S 1000Nm 521Nm
ACT 240S 1423Nm 721Nm
ACT 270S 2345Nm 1060Nm
ACT 300S 2956Nm 1460Nm
ACT 350S 4247Nm 2346Nm
ACT 400S 6559Nm 2624Nm


 Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

 Model Selection
3PC Screw Pneumatic Ball Valve

Product Name 3PC Thread Ball Valve
Pressure 1000WOG
Valve Matreial CF8/SS304 CF8M/SS316 WCB
Connection BSP/BSPT/NPT


Two Way Stainless Steel 304 Pneumatic Control Valve with Actuator for Water 1
