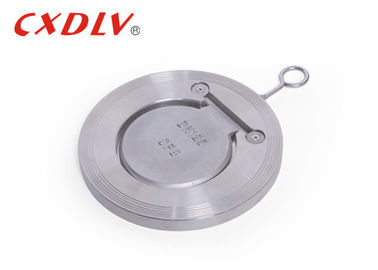

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb
Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb

Large Image :  Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: H74
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M/CF8/CF3/CF3M/WCB Temperature: -29℃~180℃
Medium: Water.Air.Oil Size: 18"~24"
Pressure: 300lb Flange Dimension: JB/ANSI
High Light:

wafer type check valve

,

wafer non return valve

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb



 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- 1/1/2"~24"

Pressure Rating:
- 150LB~300LB
Temperature Range:
- -29°C~180°C



 Application



      Used for the supply and drainage pipes, discs imported at both ends of the central axis-oriented, flexible opening and closing, can be installed horizontally or vertically. The valve is spring loaded, its fast closing can effectively eliminate the water hammer or noise comes from water supply of high-rise building/fire protection, good sealing performance , turn off no noise. It has the advantages of small size, light weight, small fluid resistance, fatigue resistance and long life.Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb 0

SIZE B A L
1 1/2" 23 87 19
2" 30 104 19
2 1/2" 41 124 19
3" 54 136 19
4" 71 174 19
5" 92 197 19
6" 112 222 19
8" 155 279 28
10" 201 339 28
12" 240 409 38
14" 270 450 44
16" 311 514 48
18" 360 549 58
20" 410 606 64
24" 490 717 68



 Feature



1. Sensitive and good sealing performance
2. Small size, lightweight, its weight is only 1/4 to 1/20 of the traditional flange check valve
3. Valve flap closes fast and the water hammer pressure is small
4. Horizontal pipes or vertical pipes can be used, easy installation
5. Smooth flow channels, fluid-resistance
6. Sensitive action, good sealing performance



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
