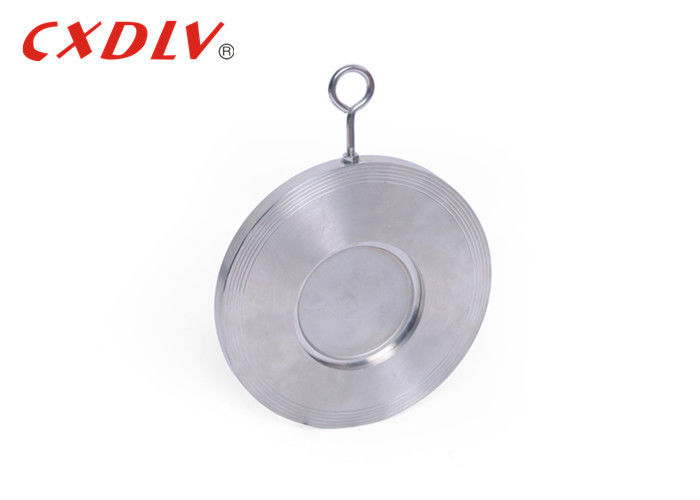

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex
GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex

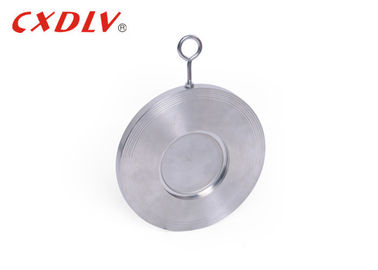

Large Image :  GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: H74
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M/CF8/CF3/CF3M/WCB Temperature: -29℃~180℃
Medium: Water.Air.Oil Size: DN350~DN400
Pressure: PN40 Flange Dimension: JB/ANSI
High Light:

wafer type check valve

,

wafer swing check valve

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex



 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C



 Application



      H74 type wafer-type check valve is an ultra-thin check valve. Its main function is to prevent backflow of medium. It is an automatic valve that relies on medium pressure to open and close. Applicable to water supply systems, petroleum, chemical, metallurgical and other industrial sectors, applicable to places with installation space restrictions. Wenzhou Xidelong valve pair disc type check valve consists of several parts such as valve body, valve disc and sealing ring. It adopts swing type structure with light weight, simple structure, convenient installation and maintenance, and service life. Long features.

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex 0

SIZE B A L
1 1/2" 23 87 19
2" 30 104 19
2 1/2" 41 124 19
3" 54 136 19
4" 71 174 19
5" 92 197 19
6" 112 222 19
8" 155 279 28
10" 201 339 28
12" 240 409 38
14" 270 450 44
16" 311 514 48
18" 360 549 58
20" 410 606 64
24" 490 717 68



 Feature



1. The valve flap is closed quickly and the water hammer pressure is small;
2. Horizontal or vertical pipes can be used for easy installation;
3. Smooth flow path and low fluid resistance;
4. Sensitive action and good sealing performance;
5. The valve flap has a short stroke and the valve has a small impact force;
6. Long service life and high reliability



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
