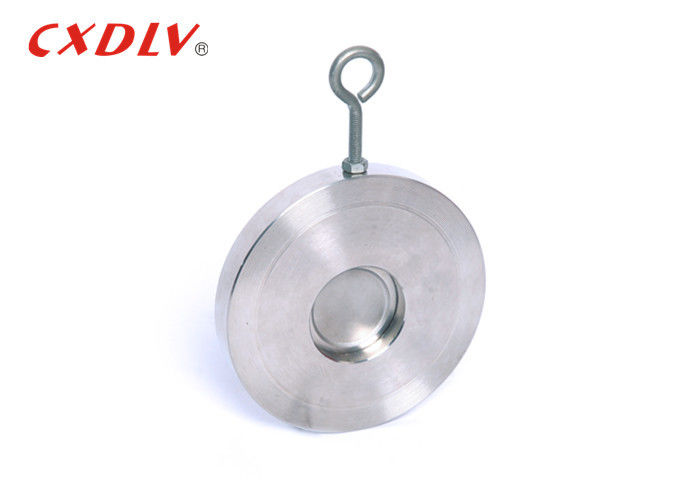

Thin Type Single Disc Wafer Check Valve One Way Cast Steel Quick Closing
Specifications
Applicable Standards:
- FACE TO FACE: AP16D/ANSE B16.10
- FLANGE DIMENSION: ANSI/DIN/JIS/JB
Size Range:
- DN40~DN600
Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C
Application
The single-piece swing check valve H74W/X is an ultra-thin check valve. It adopts short structure size and single valve design. Compared with the traditional swing check valve, this series of stainless steel valves has No external leakage, can be installed in any position, good sealing performance, small linear vibration, low pressure drop and zero seat ring wear advantage of check.The single flap swing check valve is a disc type ultra-thin check valve. It is mainly suitable for water supply systems, petroleum, chemical, metallurgical and other industrial sectors and is most suitable for installation space restrictions of check valve.
| DN | B | A(NF) | L |
| 40 | 24 | 93 | 16 |
| 50 | 28 | 108 | 16 |
| 65 | 45 | 128 | 16 |
| 80 | 55 | 142 | 16 |
| 100 | 76 | 162 | 16 |
| 125 | 93 | 192 | 16 |
| 150 | 118 | 218 | 19 |
| 200 | 160 | 273 | 28 |
| 250 | 200 | 329 | 28 |
| 300 | 230 | 385 | 38 |
| 350 | 273 | 445 | 38 |
| 400 | 313 | 496 | 48 |
| 450 | 362 | 556 | 48 |
| 500 | 412 | 618 | 58 |
| 600 | 491 | 732 | 68 |
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
