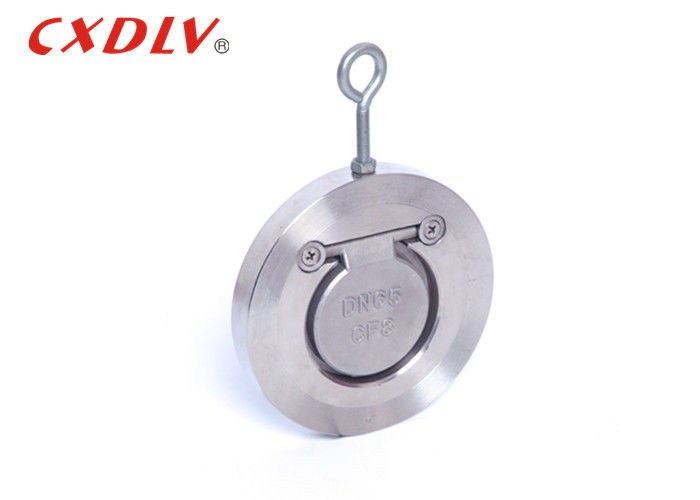

H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum

H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum
H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum

Large Image :  H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: H74
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M/CF8/CF3/CF3M/WCB Bolt/Washer: CF8M/CF8/CF3/CF3M/WCB
Temperature: -29℃~180℃ Medium: Water.Air.Oil
Size: DN65~DN80 Pressure: PN16
High Light:

wafer swing check valve

,

wafer non return valve

H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum



 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C



 Application



         The clamped disc check valve is mainly suitable for water supply systems, petroleum, chemical, metallurgical and other industrial sectors, and is applicable to places with installation space restrictions. The H74 series of clip-on-grip check valves are designed with a clip-on connection and a straight-through single-valve automatic valve. The sealing surfaces of the valve body and disc can be welded with stainless steel or stellite.Suitable for clean media, not suitable for media containing solid particles and high viscosity

H74 Wafer Connection Gas Oil Check Valve Single Plate One Way Valve For Petroleum 0

DN B A(NF) L
40 24 93 16
50 28 108 16
65 45 128 16
80 55 142 16
100 76 162 16
125 93 192 16
150 118 218 19
200 160 273 28
250 200 329 28
300 230 385 38
350 273 445 38
400 313 496 48
450 362 556 48
500 412 618 58
600 491 732 68



 Feature



        The wafer-type check valve is a single-valve swing-type clamp-connected check valve, which is used as a device for preventing backflow of the medium in the pipeline. They are all ultra-thin check valves, and the H74X and H74H type wafers are sandwiched. The check valve has the advantages of simple structure, beautiful appearance, light weight and convenient installation.



 Why choose us?



       Wenzhou Xidelong Valve Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of valve , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



        As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe,Asia.



        Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
