| MOQ: | 1 Piece |
| Price: | Negotiation |
| Delivery Period: | 7-30 days |
| Payment Method: | L/C, T/T, Western Union |

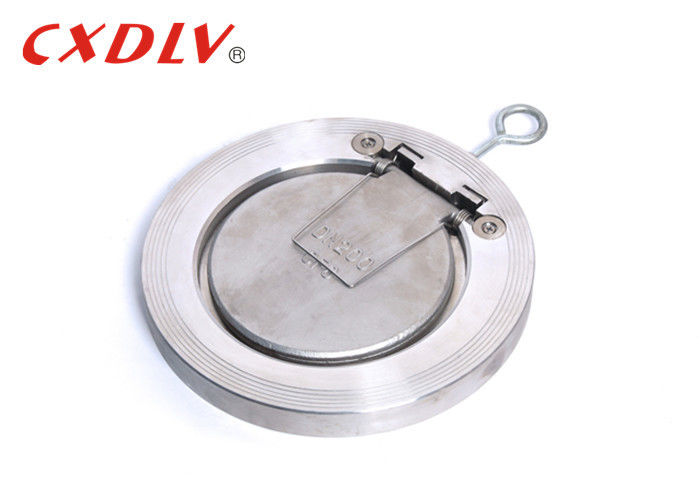

H74 Single Disc Swing Wafer Check Valve With Spring Stainless Steel ANSI 150LB
Specifications
Applicable Standards:
-FACE TO FACE: AP16D/ANSE B16.10
-FLANGE DIMENSION: ANSI/DIN/JIS/JB
Size Range:
- 1/1/2"~24"
Pressure Rating:
- 125LB~600LB
Temperature Range:
- -29°C~180°C
Application
H74 clip single-valve check valve is an ultra-thin check valve, which has the advantages of simple structure, beautiful appearance, light weight and convenient installation. The thin check valve is mainly suitable for the water supply system, petroleum, chemical, metallurgical and other industrial sectors, which is most suitable for places with installation space restrictions.
| SIZE | B | A | L |
| 1 1/2" | 23 | 87 | 19 |
| 2" | 30 | 104 | 19 |
| 2 1/2" | 41 | 124 | 19 |
| 3" | 54 | 136 | 19 |
| 4" | 71 | 174 | 19 |
| 5" | 92 | 197 | 19 |
| 6" | 112 | 222 | 19 |
| 8" | 155 | 279 | 28 |
| 10" | 201 | 339 | 28 |
| 12" | 240 | 409 | 38 |
| 14" | 270 | 450 | 44 |
| 16" | 311 | 514 | 48 |
| 18" | 360 | 549 | 58 |
| 20" | 410 | 606 | 64 |
| 24" | 490 | 717 | 68 |
Feature
1. The valve flap is closed quickly and the water hammer pressure is small;
2. Horizontal or vertical pipes can be used for easy installation;
3. Smooth flow path and low fluid resistance.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Application
H74 clip single-valve check valve is an ultra-thin check valve, which has the advantages of simple structure, beautiful appearance, light weight and convenient installation. The thin check valve is mainly suitable for the water supply system, petroleum, chemical, metallurgical and other industrial sectors, which is most suitable for places with installation space restrictions.
Video
Video
|
|
