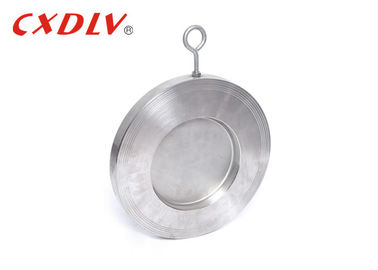

ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing

ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing
ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing

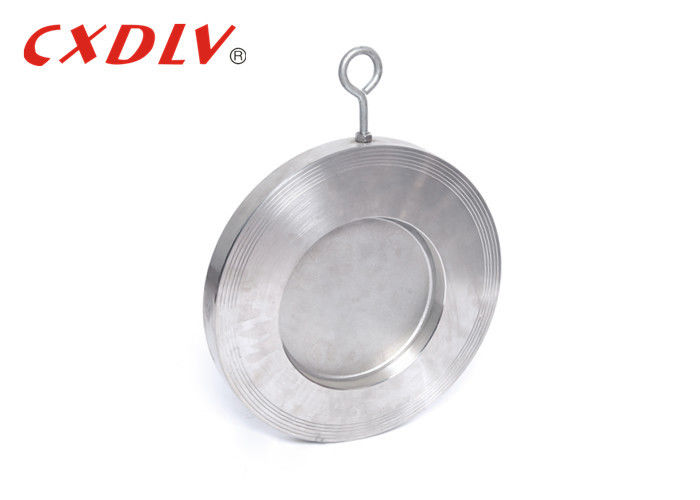

Large Image :  ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: H74
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M Bolt/Washer: CF8M
Seal: Viton Temperature: -29℃~400℃
Medium: Water.Air.Oil Size: 5"~12"
High Light:

wafer type check valve

,

wafer non return valve

ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing



 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- 1/1/2"~24"

Pressure Rating:
- 125LB~600LB
Temperature Range:
- -29°C~180°C


 Application



   Check Valves The function of this type of valve is to allow only the medium to flow in one direction and to prevent flow in the opposite direction. Usually, the valve is automatically operated, and the valve flap is opened by the fluid pressure flowing in one direction; when the fluid flows in the opposite direction, the fluid pressure and the self-reclosing valve flap of the valve disc act on the valve seat to cut off the flow.

ANSI DIN Quick Closing Wafer Check Valve Sandwich Type Single Disc Swing 0

SIZE B A L
1 1/2" 23 87 19
2" 30 104 19
2 1/2" 41 124 19
3" 54 136 19
4" 71 174 19
5" 92 197 19
6" 112 222 19
8" 155 279 28
10" 201 339 28
12" 240 409 38
14" 270 450 44
16" 311 514 48
18" 360 549 58
20" 410 606 64
24" 490 717 68





 Feature



1. Applicable for and easily installed for vertical or horizontal pipelines;
2. Smooth flow passway and small fluid resistance;
3. Flexible action and good sealing performance;



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
