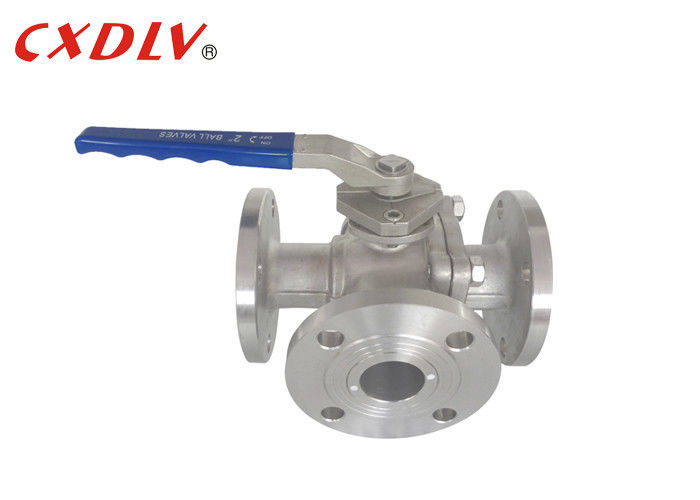

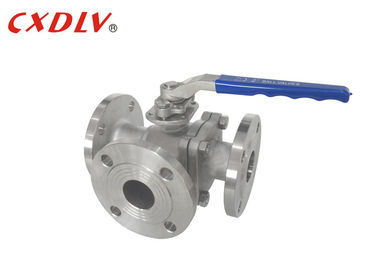

Full Bore SS 3 Way Flanged Ball Valve T / L Port Floating Valve
Specifications
Full Port 3 Way Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
Pressure | Size | L | L1 | D | D1 | D2 | Z-φd | ISO5211 φD |
4-φW |
PN16 | 15 | 130 | 65 | 95 | 65 | 45 | 4-14 | F5 | 4-φ6 |
20 | 160 | 80 | 105 | 75 | 55 | 4-14 | F5-F7 | 4-φ8 | |
25 | 180 | 90 | 115 | 85 | 68 | 4-14 | F5-F7 | 4-φ8 | |
32 | 200 | 100 | 135 | 100 | 78 | 4-18 | F5-F7 | 4-φ8 | |
40 | 220 | 110 | 145 | 110 | 88 | 4-18 | F7-F10 | 4-φ10 | |
50 | 240 | 120 | 160 | 125 | 102 | 4-18 | F7-F10 | 4-φ10 | |
65 | 260 | 130 | 180 | 145 | 122 | 4-18 | F7-F10 | 4-φ10 | |
80 | 280 | 140 | 195 | 160 | 138 | 8-18 | F10-F12 | 4-φ12 | |
100 | 320 | 160 | 215 | 180 | 158 | 8-18 | F10-F12 | 4-φ12 | |
125 | 280 | 190 | 245 | 210 | 188 | 8-18 | F12-F14 | 4-φ16 | |
150 | 440 | 220 | 280 | 240 | 212 | 8-23 | F14-F16 | 4-φ16 | |
200 | 550 | 275 | 335 | 295 | 268 | 12-23 | F14-F16 | 4-φ16 |
Application
1. Refineries
2. Petrochemical
3. Chemical Process Equipment
4. Process Control Applications
5. Water and Waste applications
6. Pipeline applications
Features
1. Cut of or shut off flow
2. Switch flow between two different sources
3. Combine the flow from two different sources
4. Alternate flow between two different destinations
5. Divert flow coming from one source to another destination
6. Split flow coming from one source between two outgoing destinations
