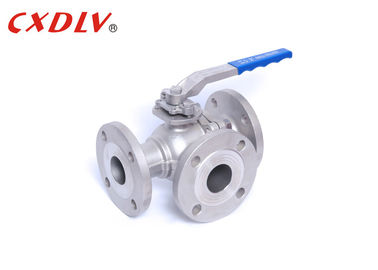

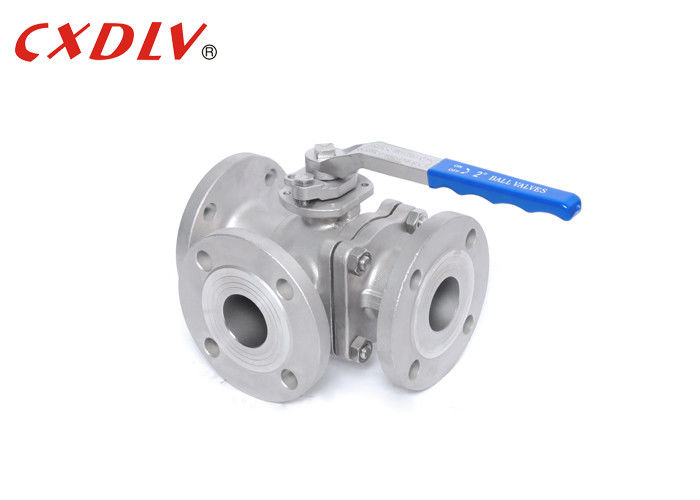

High Performance 3 Way Ball Valve Stainless Steel Full Port PN40 T / L Port
Specifications
3 Way Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
Pressure | Size | L | L1 | D | D1 | D2 | Z-φd | ISO5211 φD |
4-φW |
PN16 | 15 | 130 | 65 | 95 | 65 | 45 | 4-14 | F5 | 4-φ6 |
20 | 160 | 80 | 105 | 75 | 55 | 4-14 | F5-F7 | 4-φ8 | |
25 | 180 | 90 | 115 | 85 | 68 | 4-14 | F5-F7 | 4-φ8 | |
32 | 200 | 100 | 135 | 100 | 78 | 4-18 | F5-F7 | 4-φ8 | |
40 | 220 | 110 | 145 | 110 | 88 | 4-18 | F7-F10 | 4-φ10 | |
50 | 240 | 120 | 160 | 125 | 102 | 4-18 | F7-F10 | 4-φ10 | |
65 | 260 | 130 | 180 | 145 | 122 | 4-18 | F7-F10 | 4-φ10 | |
80 | 280 | 140 | 195 | 160 | 138 | 8-18 | F10-F12 | 4-φ12 | |
100 | 320 | 160 | 215 | 180 | 158 | 8-18 | F10-F12 | 4-φ12 | |
125 | 280 | 190 | 245 | 210 | 188 | 8-18 | F12-F14 | 4-φ16 | |
150 | 440 | 220 | 280 | 240 | 212 | 8-23 | F14-F16 | 4-φ16 | |
200 | 550 | 275 | 335 | 295 | 268 | 12-23 | F14-F16 | 4-φ16 |
Application
Ball valves can be used in a variety of applications and markets, such as transmission and storage, gas processing, industrial, and many more. ball valves provide reliable leak protection which is especially beneficial in gas applications. Ball valves have low pressure drop and can open and close quickly.
Features & Benefits
1. Investment cast body construction
2. Anti static device
3. Double body sealing provided (O-ring, Gasket )
4. Face to Face as per Standard dimensions
