| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to Different Valves Structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

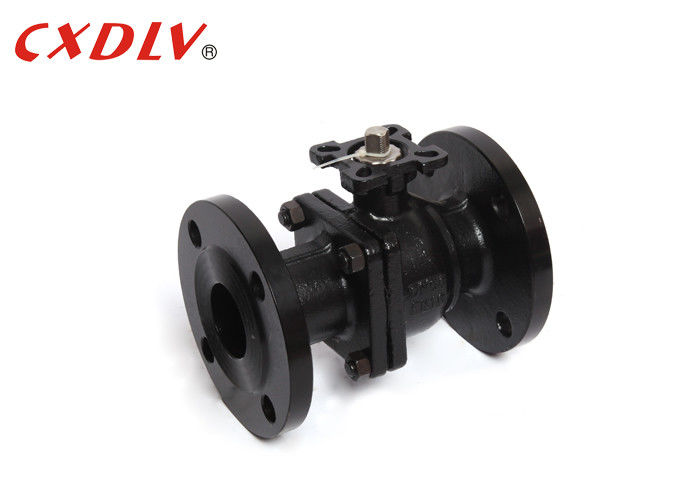

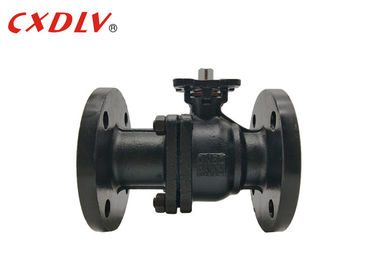

WCB 150LB Carbon Steel 4 inch Stainless Steel Ball Valve Float Valve In Stock
Specifications
ANSI Cast Floating Ball Valve
Applicable Standards:
- Design and Manufacturing: ASME B16.5,API 608
- Connection: ASMEB16.5
- Fireproof Test: API607 4th 1993
- Test and Inspection: API 598, API6D
Size Range:
- 1/2" ~ 8"
Pressure Rating:
- ANSI 150LB 300LB
Temperature Range:
- 20 °C ~ 185 °C
| Unti:mm | ||||||||
| Pressure | Size | φD | L | φE | φB | φC | T | f |
| Class150 | 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 1.6 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 1.6 | |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 1.6 | |
| 1 1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 1.6 | |
| 1 1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 1.6 | |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 1.6 | |
| 2 1/2" | 64 | 190 | 178 | 139.5 | 105 | 18 | 1.6 | |
| 3" | 76 | 203 | 190 | 152.5 | 127 | 19 | 1.6 | |
| 4" | 102 | 229 | 229 | 19.5 | 157 | 24 | 1.6 | |
| 5" | 127 | 356 | 254 | 216 | 186 | 24 | 1.6 | |
| 6" | 152 | 394 | 279 | 241.5 | 216 | 26 | 1.6 | |
| 8" | 203 | 457 | 343 | 298.5 | 270 | 29 | 1.6 | |
Application
* Wide range of applications, from small to a few millimeters in diameter, large meters, from high vacuum to high pressure can be applied.
* Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy,aviation, rocket and other departments, as well as people's daily lives.
Advantage of Ball Valve
1. Full Bore for uninterrupted flow and reduced pressure drop / energy consumption
2. Investment Casting for better finish
3. Fine finished stem in the packing area for better gland life
Model Selection
DIN 2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB 300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
Video
Video
Video
Video
Video
Video
|
|
