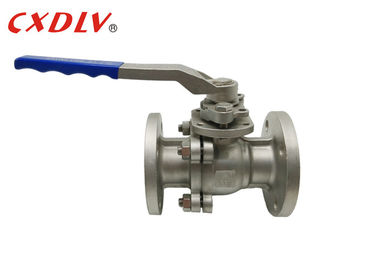

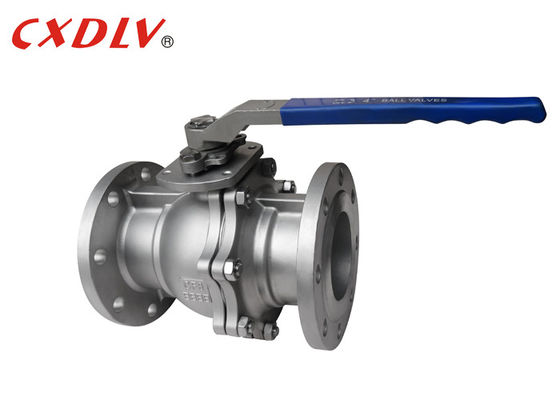

Stainless Steel DIN RF Flanged Ball Valve 2pc With Handle Operation

Stainless Steel DIN RF Flanged Ball Valve 2pc With Handle Operation

MOQ: 1pc
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q41F
Standard:
DIN
Body Material:
CF8 CF8M WCB
Pressure:
PN16
Size:
DN15~DN200
Structure:
Split Body
Connection:
Double Flange
Medium:
Water Oil Gas
Highlight:

cf8m ball valve

,

stainless steel ball valve

Product Description

Stainless Steel DIN RF Flanged Ball Valve 2pc With Handle Operation



Specifications

DIN Standard Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing:DIN 3357/1, 2EN12516-1

- Flange Connection:DIN2542~DIN2545,En1092

- Fireproof Test: API607 4th 1993

- Test and Inspection:DIN3230/3,En12266

Size Range:
- DN15~DN200

Pressure Rating:
- DIN PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Full bore ball valves have the same bore diameter as the pipe. The advantage is that there are no extra friction losses, and that the system is mechanically easier to clean (pigging). The downside is that the ball and the housing are bigger than a standard ball valve with reduced bore. The cost is therefore slightly higher, and for many applications this is not required.



Stainless Steel DIN RF Flanged Ball Valve 2pc With Handle Operation 0

Unit:mm
Pressure Size L φE φB φC T f
PN16 15 130 95 65 45 14 2
20 140 105 75 55 14 2
25 150 115 85 65 14 2
32 165 135 100 78 16 2
40 180 145 110 85 16 3
50 200 160 125 100 16 3
65 220 180 145 120 18 3
80 250 195 160 135 20 3
100 280 215 180 155 20 3
125 320 245 210 185 22 3
150 360 280 240 210 24 3
200 400 335 295 265 26 3



 Application

Ball Valves are used in a variety of applications including, but not limited to:

Field Gas Plants, Crude Oil Plants, Gas Feed Lines, Polymer Plants,Automated Process Applications,Industrial Gas Processing Plants,LNG Plants,Hydrocarbon Processing,Tank Farms,Oil Refinery Feed Stock Lines



 Ball Valve Characteristics

Floating Ball Valves feature a ball that floats between the two seats and uses line pressure to push the ball downstream for a positive closure.

Floating Ball Valve Characteristics include:

1. No lower stem, providing savings during constrution

2. Relatively small size range, typically from 1/2″ – 12″

3. Tight sealing ability via the ball on the seat

4. Low operating torque

5. Downstream sealing only



 Model Selection

 2PC Full Port Floating Ball Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
  Matreial 1) CF8/SS304     2) CF8M/SS316    3) CF3/SS304L    4) CF3M/SS316L    5) WCB
  Model 1) High Platform Model                2) Handle Model
