| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

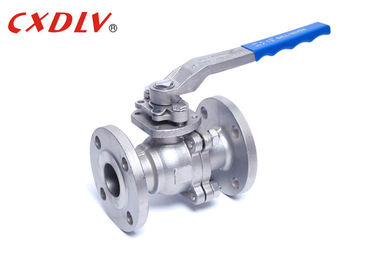

High Pressure 2 Piece Ball Valve Manual JIS 20K CF8 Stainless Steel Gas
Specifications
JIS Standard Handle Oprated Ball Valve
Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608
- Flange Connection: JIS B2212 ~ B213
- Fireproof Test: API607 4th 1993
- Test and Inspection: JIS B2003, API6D
Size Range:
- 15A ~ 200A
Pressure Rating:
- JIS 10K 20K
Temperature Range:
- -20°C~185°C
Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.
| Unit:mm | |||||||
| Pressure | Size | L | φE | φB | φC | T | f |
| 10K | 15 | 108 | 95 | 70 | 52 | 12 | 1 |
| 20 | 117 | 100 | 75 | 58 | 14 | 1 | |
| 25 | 127 | 125 | 90 | 70 | 14 | 1 | |
| 32 | 140 | 135 | 100 | 80 | 16 | 2 | |
| 40 | 165 | 140 | 105 | 85 | 16 | 2 | |
| 50 | 178 | 155 | 120 | 100 | 16 | 2 | |
| 65 | 190 | 175 | 140 | 120 | 18 | 2 | |
| 80 | 203 | 185 | 150 | 130 | 18 | 2 | |
| 100 | 229 | 210 | 175 | 155 | 18 | 2 | |
| 125 | 356 | 250 | 210 | 185 | 20 | 2 | |
| 150 | 394 | 280 | 240 | 215 | 22 | 2 | |
| 200 | 457 | 330 | 290 | 265 | 22 | 2 | |
Application
Ball Valves are used for flow and pressure control and shut off for corrosive fluids, slurries, normal liquid and gases.
They are used in the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.
Why choose ball valve
1. They contain a compact and low-maintenance design that requires no lubrication
2. They are cost-effective among all of the valves
3. The biggest advantage of ball valves is that they have poor throttling characteristics that can cause the seat of a ball valve to easily erode.
4. They provide leak-proof service.
5. They open and close quickly.
6. Ball valves have multi-way design flexibility.
Model Selection
2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
